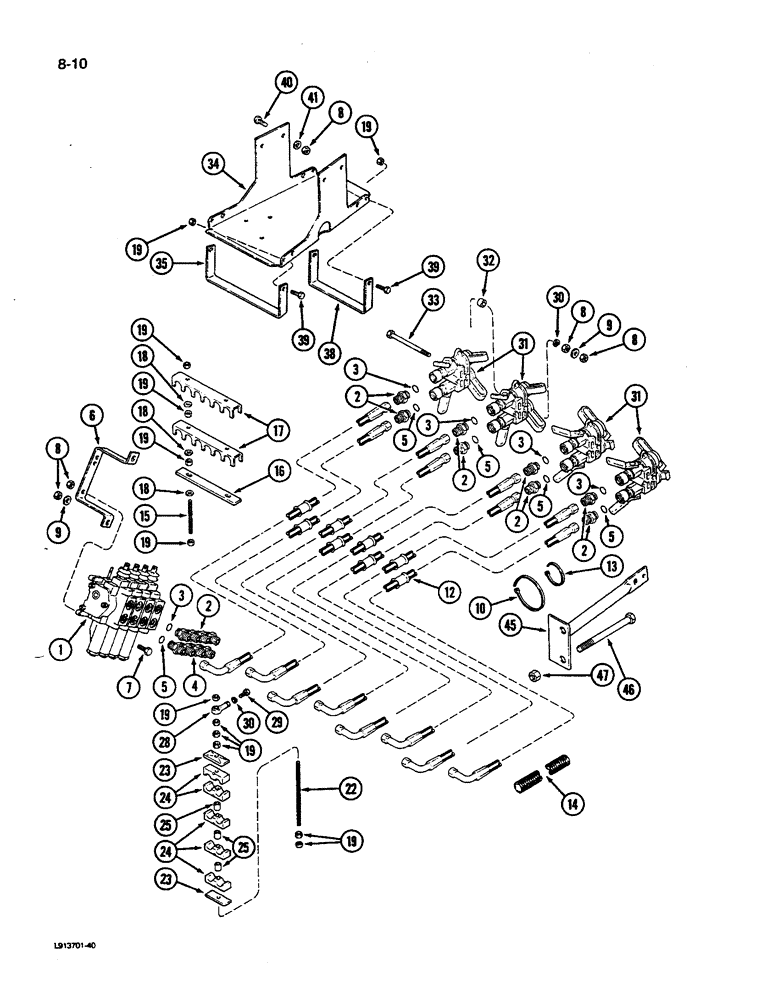

Запчасти Case IH 9280 (8-010) - HYDRAULIC COUPLER CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-26)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch thread, Includes: Ref. 3

12шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER - long straight, 7/8-14 inch thread, Includes: Ref. 5

4шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

50-3042T1

SUPPORT

BRACKET - valve mounting

2шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

8

425-106

NUT,3/8"-16, Cl 5

18шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

10

50-2037T1

STRAP

- nylon

3шт.

12

31-3023

HOSE,15.88mm ID x 135mm L

ASSEMBLY - valve to couplers (Replaces 31-2948)

8шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

14

50-3220T1

CONDUIT

GUARD - hose, flex (Order S119717, Serial Range: cut-length)

8шт.

15

50-3343T1

STUD

- clamp mounting (Replaces 50-2714T1)

2шт.

16

50-3430T1

PLATE

BAR - clamping

1шт.

17

50-3422T2

SUPPORT

BRACKET - hose

2шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

22

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch

1шт.

23

50-2533T1

PLATE

COVER - clamp

2шт.

24

50-3396T1

FIXING BRACKET

CLAMP - half, hose

5шт.

25

19-6249

SPACER

- clamp

3шт.

28

19-6233

BALL JOINT

- clamp mount

1шт.

29

428-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- hex, 3/8 NF x 1 inch, Grade 8

1шт.

30

492-11038

LOCK WASHER,3/8"

5шт.

31

REF

INSTRUCTION

COUPLER ASSEMBLY - remote (See Figure 8-32)

4шт.

32

50-3371T1

SPACER

- coupler

4шт.

33

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

4шт.

34

50-3428T2

SUPPORT

BRACKET - mounting, remote hose

1шт.

35

50-3425T1

SUPPORT

BRACKET - mounting, remote hose

1шт.

38

50-3426T1

SUPPORT

BRACKET - mounting, hose

1шт.

39

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

45

50-3318T1

SUPPORT

BRACKET - mounting, coupler left (With PTO)(Shown)

1шт.

45

50-3319T1

SUPPORT

BRACKET - mounting, coupler right (With PTO)

1шт.

45

50-3334T1

SUPPORT

BRACKET - mounting, coupler (Without PTO)

2шт.

46

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, Grade 8 (With three point hitch)

4шт.

46

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch (Without three point hitch)

4шт.

46

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Without PTO)

4шт.

47

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

35-1823T91

KIT

VALVE KIT - fourth spool (Includes parts needed to add an Ref.) Quantities listed are for tractors with a 4 spool valve. For tractors with a 3 spool valve, quantities of some Refs. will be less.

1шт.
