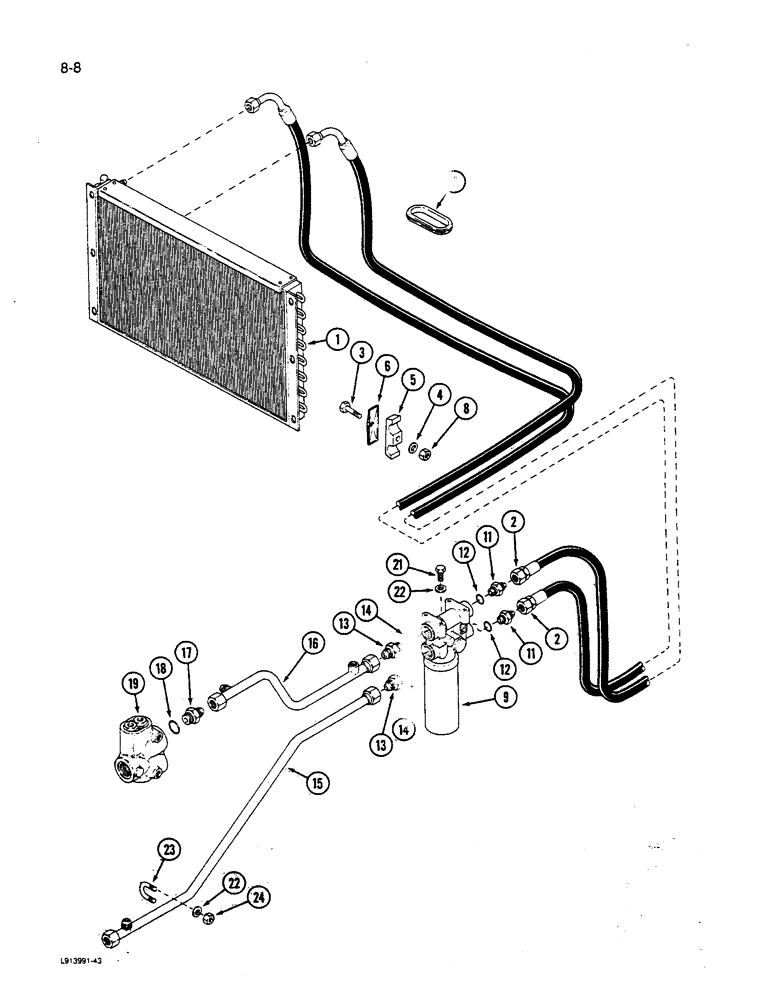

Запчасти Case IH 9280 (8-008) - OIL COOLER & FILTER CIRCUIT P.I.N. JCB0028400 & AFTER (08) - HYDRAULICS

1

90-6708T1

OIL COOLER

COOLER - oil, hydraulic (See Figure 8-22 for mounting)

1шт.

2

31-2896

HOSE,15.88mm ID x 2870.2mm L

ASSEMBLY - oil cooler to filter, 113"

2шт.

3

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

5

50-2534T1

CLAMP

- hose retaining

1шт.

6

50-2533T1

PLATE

COVER - clamp

1шт.

7

NSS

NOT SOLD SEPARAT

GROMMET - hose protection (Order 31-1785T1, Serial Range: cut-length)

1шт.

31-1785

GROMMET

- bulk, 10 foot roll

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic (See Figure 8-22)

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

15

50-3505T2

HYD TUBE

TUBE - filter to check valve

1шт.

16

50-3504T2

HYD TUBE

TUBE - priority, Serial Range: valve-filter

1шт.

17

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 18

1шт.

18

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 8-24)

1шт.

21

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

23

19-153

U-BOLT

1шт.

24

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.
