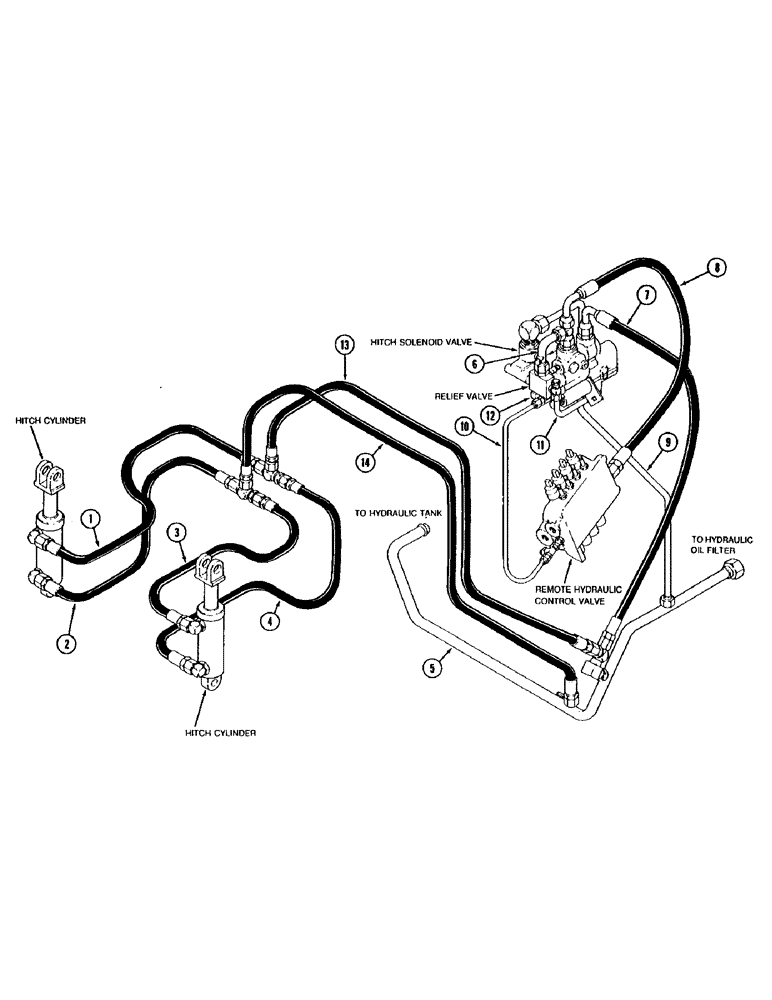

Запчасти Case IH 9280 (1-026) - ELECTRIC CONTROLLED HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Left Hitch Cylinder Drain Hose, Page 8-49

1шт.

2

Left Hitch Cylinder Supply Hose, Page 8-49

1шт.

3

Right Hitch Cylinder Drain Hose, Page 8-49

1шт.

4

Right Hitch Cylinder Supply Hose, Page 8-49

1шт.

5

Hydraulic Drain Tube to Hydraulic Tank, Page 8-3

1шт.

6

Pressure Reducing Valve Tube, Page 8-47

1шт.

7

Hitch Cylinder Supply Tube, Page 8-47

1шт.

8

Hitch solenoid Valve Supply Hose, Page 8-47

1шт.

9

Hitch solenoid Valve Drain Tube, Page 8-47

1шт.

10

Hydraulic Pressure Sensing Tube, Page 8-47

1шт.

11

Pressure Reducing Valve Tube, Page 8-47

1шт.

12

Pressure Reducing Valve Drain Hose, Page 8-47

1шт.

13

Hitch Cylinder Supply Hose, Page 8-49

1шт.

14

Hitch Cylinder Drain Hose, Page 8-49

1шт.
