Запчасти Case IH 9280 (6-130) - TRACTION CONTROL AXLE ASSEMBLY DIFFERENTIAL, (CONT) (06) - POWER TRAIN

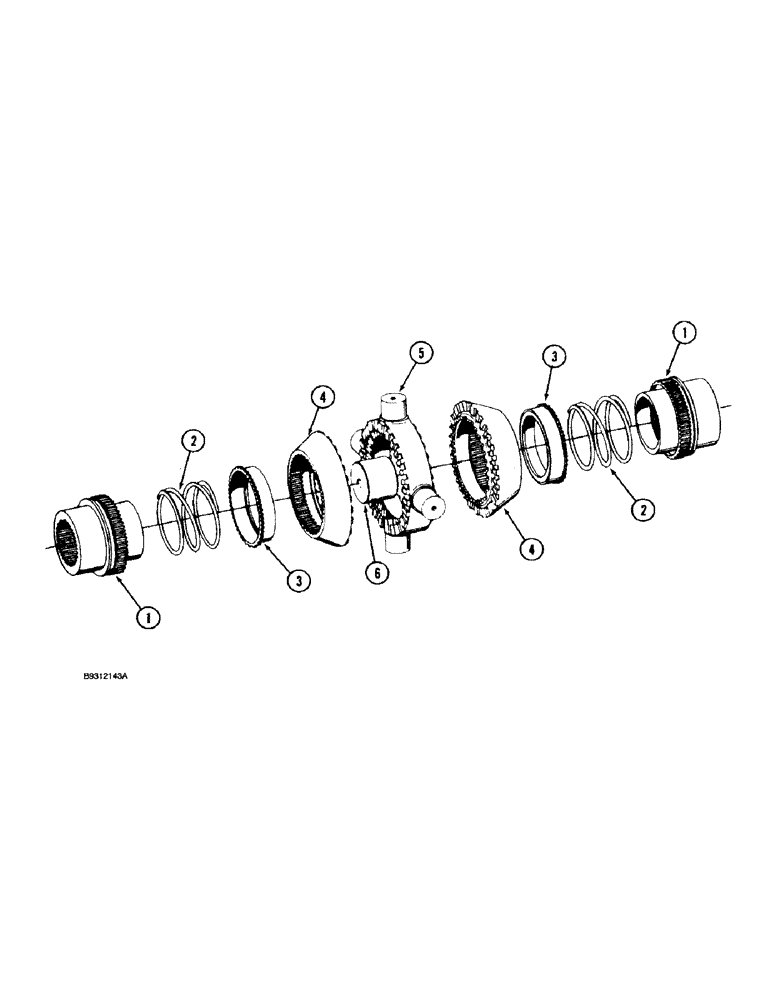

Схема запчастей Case IH 9280 - (6-130) - TRACTION CONTROL AXLE ASSEMBLY DIFFERENTIAL, (CONT) (06) - POWER TRAIN
3
1
6
3
5
4
2
2
1
4

Артикул

Название

Примечание

Количество

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, K598.95 Series, continued, Includes: Ref. 19 - 50 and 1 - 15 on Fig. 6-128

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear, K598.85 Series, continued, Includes: Ref. 19 - 50 and 1 - 15 on Fig. 6-128

1шт.

90-7180T91

DIFFERENTIAL

ASSEMBLY - front, Includes: Ref. 19 - 45

1шт.

90-7179T91

DIFFERENTIAL

ASSEMBLY - rear, Includes: Ref. 19 - 45

1шт.

90-7155T91

DIFFERENTIAL

ASSEMBLY - axle, front or rear, Includes: Ref. 19 - 32

1шт.

19

90-7153T91

DIFFERENTIAL

HOUSING ASSEMBLY - differential, includes both halves

1шт.

20

90-7159T1

DIFF. SPIDER

SPIDER - gear, pinion

1шт.

21

90-7160T1

PINION

GEAR - pinion

4шт.

22

90-7161T1

WASHER

- thrust

4шт.

23

16-1559

PINION

GEAR - pinion, side

2шт.

24

90-7162T1

WASHER

- pinion gear, side

1шт.

25

90-7165T1

HUB

- splined

1шт.

26

90-7166T1

SPRING

- compression

16шт.

27

90-7167T1

THRUST WASHER

PLATE - thrust, thrust

1шт.

28

90-7168T1

DISC

PLATE - clutch, with inner teeth

11шт.

29

90-7169T1

DISC

PLATE - clutch, with outer teeth

10шт.

30

90-7170T1

THRUST WASHER

PLATE - thrust

1шт.

31

90-7172T1

RING, SNAP

RING - snap

1шт.

32

90-7171T1

WASHER

- thrust, differential side

1шт.

38

90-7154T1

SCREW

BOLT - hex flange

12шт.

39

90-7156T1

WASHER

- flat, special

4шт.

40

90-7158T1

LARGE PLATE

BAFFLE - oil, front axle

2шт.

40

90-7157T1

LARGE PLATE

BAFFLE - oil, rear axle

2шт.

41

16-1586

SPRING WASHER

WASHER - lock, 8 mm

6шт.

42

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

6шт.

43

90-7164T1

SLEEVE

- clutch

1шт.

44

90-7173T1

LARGE PLATE

PLATE - oil bath

2шт.

45

90-7174T1

SCREW,CSK, M6 x 12mm, Cl 5.6

- flat head, 6 x 12 mm

4шт.

49

90-7384T1

YOKE

- front, flanged

1шт.

50

1-6763

YOKE

- rear

1шт.

Выбрано товаров: 30
