Запчасти Case IH 9280 (6-128) - TRACTION CONTROL AXLE ASSEMBLY DIFFERENTIAL (06) - POWER TRAIN

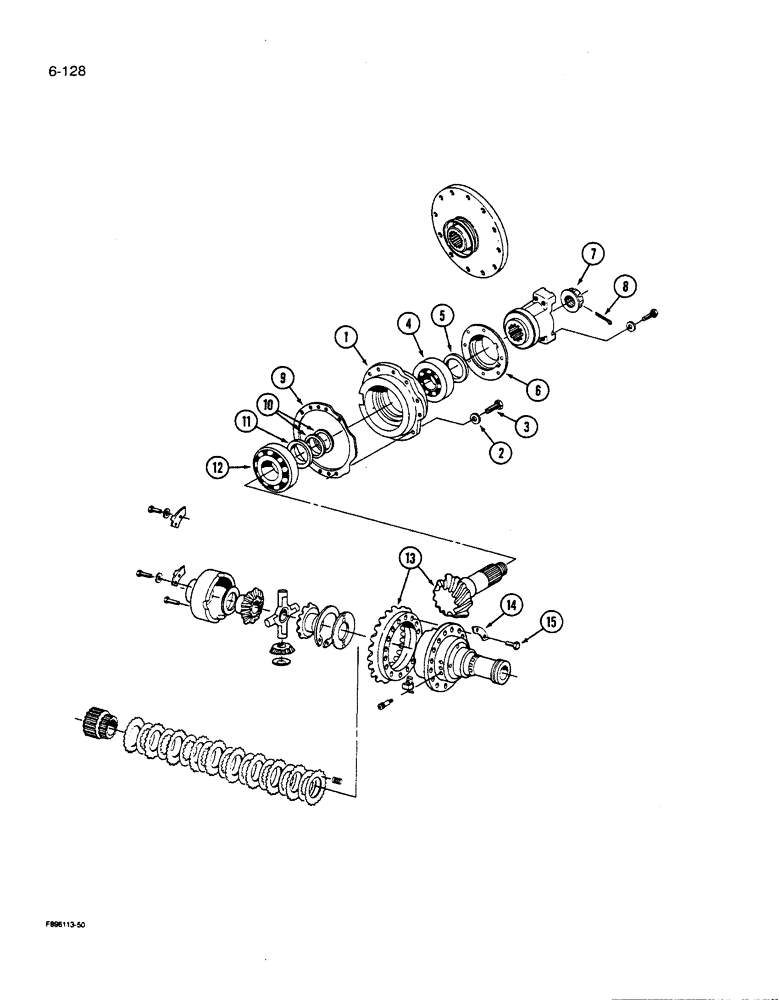

Схема запчастей Case IH 9280 - (6-128) - TRACTION CONTROL AXLE ASSEMBLY DIFFERENTIAL (06) - POWER TRAIN
3
13
4
6
14
7
11
5
8
12
1
10
9
2
15

Артикул

Название

Примечание

Количество

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (K598.95 Series) (Continued), Includes: Ref. 1 - 15 and 19 - 50 on Fig. 6-130

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear (K598.85 Series) (Continued), Includes: Ref. 1 - 15 and 19 - 50 on Fig. 6-130

1шт.

90-7180T91

DIFFERENTIAL

ASSEMBLY - front (With traction control), Includes: Ref. 1 - 15

1шт.

90-7179T91

DIFFERENTIAL

ASSEMBLY - rear (With traction control), Includes: Ref. 1 - 15

1шт.

1

90-4515T1

HOUSING

- bearing retainer

1шт.

2

16-1592

LOCK WASHER

- lock, 14 mm

12шт.

3

16-1591

BOLT,Hex, M14 x 1.5 x 45mm, Gr 10.9, Full Thd

BOLT- hex, 14 mm - 1.5 x 45 mm, Grade 10.9

12шт.

4

16-1582

TAPERED BEARING

BEARING - roller, tapered

1шт.

5

90-2509T2

SEALING RING,85mm ID x 110.35mm OD x 12mm Thk

SEAL - oil

1шт.

6

90-4517T1

COVER

- seal retainer

1шт.

7

16-1589

NUT

NUT - hex slotted flange

1шт.

8

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

9

16-1569

SHIM

- housing, 0.20 mm thick

1шт.

9

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

9

16-1568

SHIM

- housing, 0.30 mm thick

1шт.

9

16-1567

SHIM

- housing, 0.50 mm thick

1шт.

9

16-1566

SHIM

- housing, 1.00 mm thick

1шт.

10

90-4504T1

SPACER

- bearing, 4.00 mm thick

1шт.

10

90-4505T1

SPACER

- bearing, 4.04 mm thick

1шт.

10

90-4506T1

SPACER

- bearing, 4.08 mm thick

1шт.

10

90-4507T1

SPACER

- bearing, 4.12 mm thick

1шт.

10

90-4508T1

SPACER

- bearing, 4.16 mm thick

1шт.

10

90-4509T1

SPACER

- bearing, 4.20 mm thick

1шт.

10

90-4510T1

SPACER

- bearing, 4.40 mm thick

1шт.

10

90-4511T1

SPACER

- bearing, 4.60 mm thick

1шт.

10

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

10

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

10

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

11

90-4503T1

SPACER

SLEEVE - bearing spacer

1шт.

12

16-1565

TAPERED BEARING

BEARING - roller, tapered

1шт.

13

90-7175T91

GEAR, BEVEL

GEAR SET - ring and pinion, front (Includes Ref. 7, 8, 14 and 15

1шт.

13

90-7163T91

GEAR, BEVEL

GEAR SET - ring and pinion, rear (Includes Ref. 7, 8, 14 and 15

1шт.

14

16-1546

LARGE PLATE

PLATE - bolt locking

6шт.

15

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

BOLT - hex, 18 mm - 1.5 x 35 mm, Grade 10.9

12шт.

Выбрано товаров: 34
