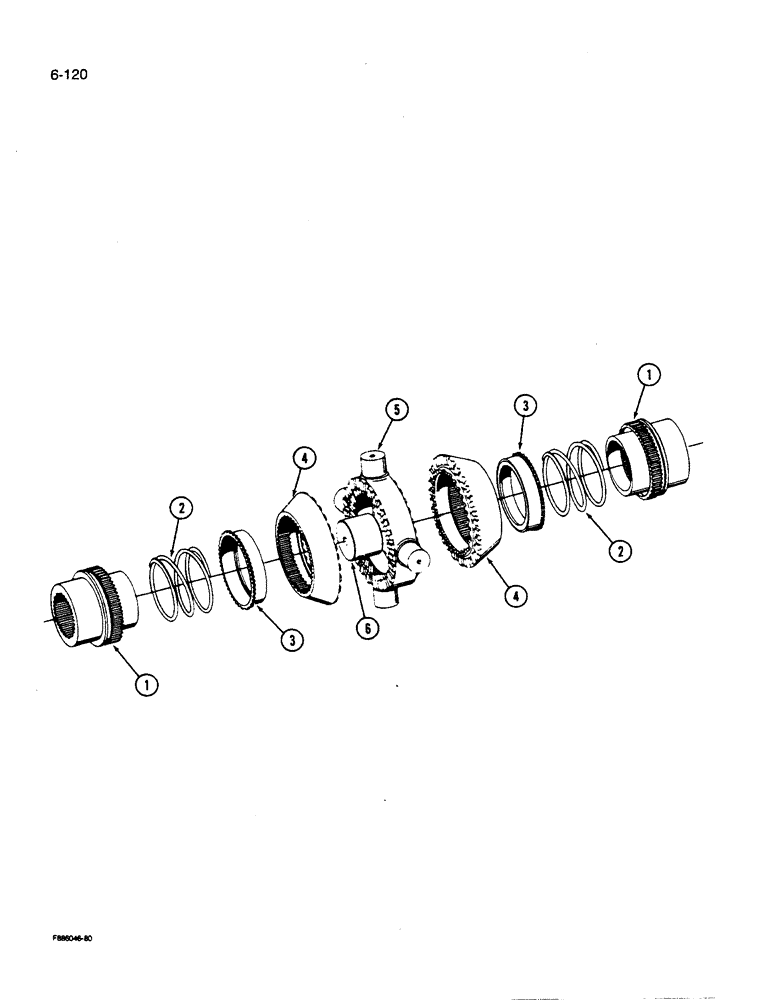

Запчасти Case IH 9280 (6-120) - NO-SPIN AXLE ASSEMBLY, IF EQUIPPED (06) - POWER TRAIN

90-6767T91

DIFFERENTIAL

AXLE ASSEMBLY - front, no-spin (K598.70 Series), Includes: Ref. 1 - 6

1шт.

Axle does not include input yoke. See Figures 6-108 - 6-114 for additional axle components. For service order 16-873 and 90-6556T91

1шт.

16-873

DIFFERENTIAL

NO-SPIN ASSEMBLY - axle, Includes: Ref. 1 - 6

1шт.

1

16-1461

GEAR

- side

2шт.

2

16-996T1

SPRING

- compression

2шт.

3

S105727

COLLAR

RETAINER - clutch

2шт.

4

16-1460T1

HUB

CLUTCH - no-spin

2шт.

5

16-998

DIFF. SPIDER

CAM - spider

1шт.

6

16-1187

SPACER

SLUG - axle spacer

1шт.
