Артикул
Название
Примечание
Количество
90-7844T91
4WD AXLE ASSY
AXLE ASSEMBLY - front, without limited slip differential, K698.78, includes parts listed on Figures 6-119A - 6-119I, Includes: Ref. 1 - 16 and 21 - 50 on Fig.6-119E
1шт.
90-7845T91
REAR AXLE
AXLE ASSEMBLY - rear, without limited slip differential, K698.68, includes parts listed on Figures 6-119A - 6-119I, Includes: Ref. 1 - 16 and 21 - 50 on Fig. 6-119E
1шт.

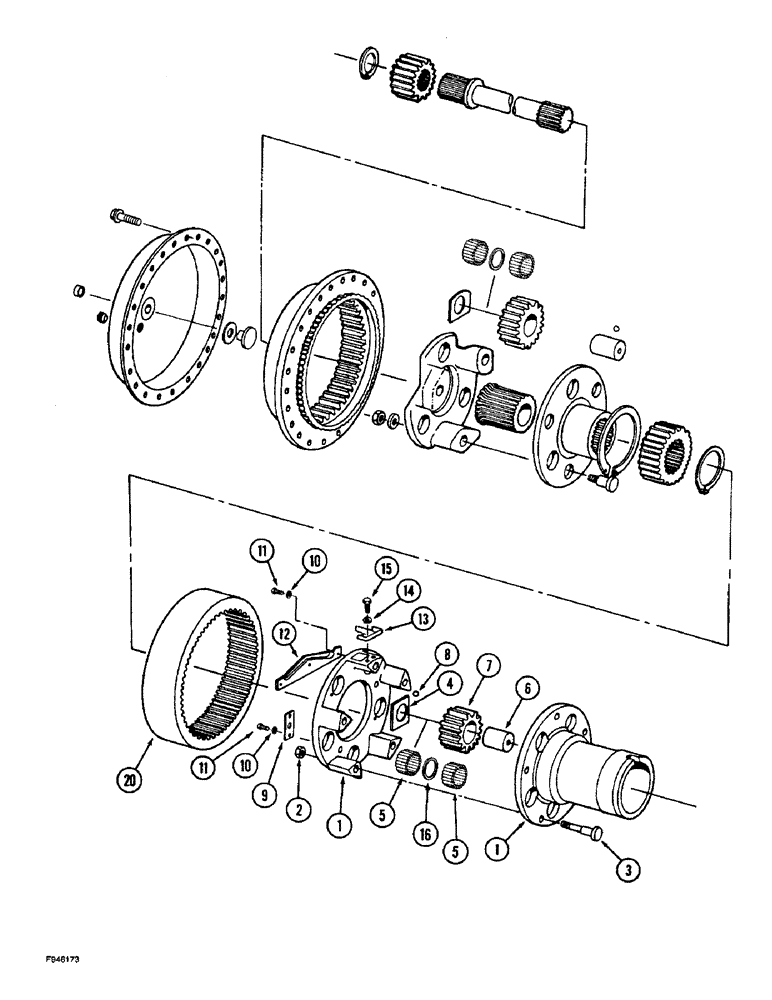

90-7830T91
PLANETARY REDUCER
PLANETARY ASSEMBLY - inner, Includes: Ref. 1 - 16
2шт.
90-7834T91
CARRIER
ASSEMBLY - inner planetary, Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
CARRIER - inner planetary, includes both halves
1шт.
2
16-1598
NUT
- hex, special
5шт.
3
90-4538T1
SCREW
BOLT - shoulder
5шт.
4
90-7831T1
LARGE PLATE
PLATE - wear
10шт.
5
90-7832T1
NEEDLE
- bearing, 44 per gear
220шт.
6
90-7833T1
PIN
SHAFT - planetary pinion, with lube hole
3шт.
6
90-7835T1
PIN
SHAFT - planetary pinion, without lube hole, planetary
2шт.
7
90-7836T1
PINION
GEAR - pinion, 19 teeth, inner planetary
5шт.
8
16-1607
BALL
- steel
5шт.
9
90-7817T1
LARGE PLATE
TAB - locking, 4 mm thick
3шт.
10
896-12008
WASHER,8.8mm ID x 17.5mm OD x 2mm Thk
- flat, 9 x 17 x 2 mm, hardened
9шт.
11
16-1626
BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9
BOLT - hex, 8 x 15 mm, grade 10.9
9шт.
12
90-4530T1
LARGE PLATE
PLATE - baffle
1шт.
13
90-4532T1
LARGE PLATE
PLATE - oil
1шт.
14
896-12006
WASHER,6.4mm ID x 13mm OD x 2mm Thk
- flat, 6.4 x 12.5 x 2 mm
2шт.
15
627-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1.0 x 12 mm, class 10.9
2шт.
16
90-7837T1
RING
- bearing seat
5шт.
20
90-4529T1
GEAR, RING
GEAR - ring
2шт.
Выбрано товаров: 22
