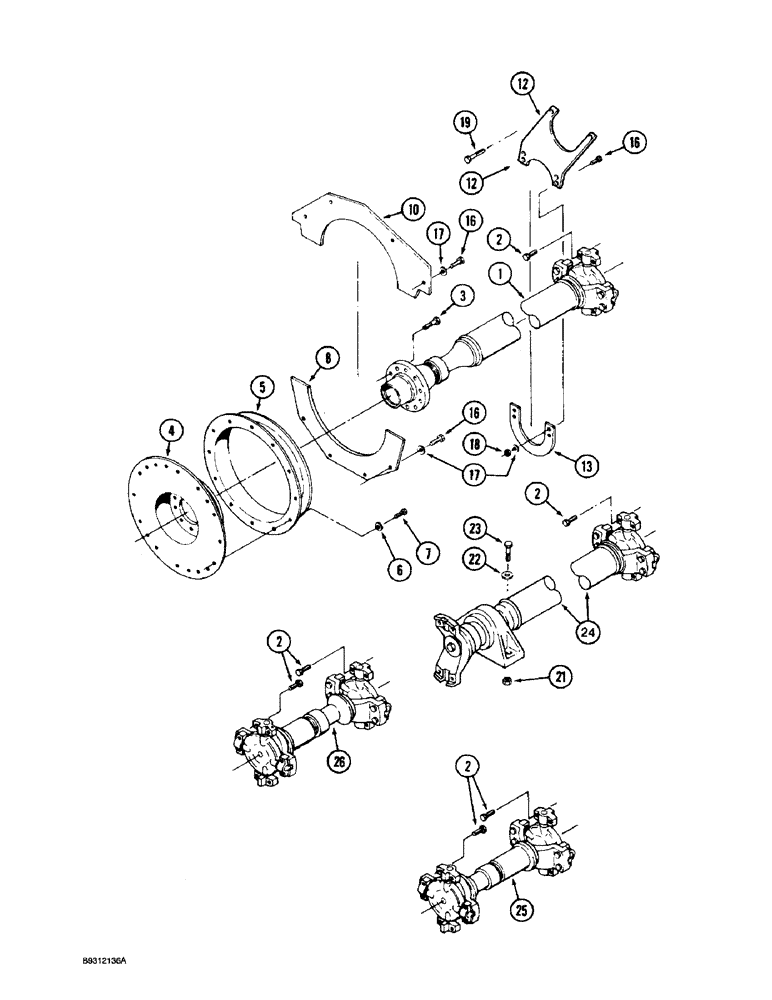

Запчасти Case IH 9280 (6-084) - DRIVE SHAFTS & MOUNTING POWER SHIFT TRACTOR (06) - POWER TRAIN

1

90-7510T91

SHAFT

ASSEMBLY - drive, engine to transmission (8C), parts list Figure 6-88

1шт.

2

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

24шт.

3

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

10шт.

4

90-7558T1

DAMPER

- vibration, used when not equipped with slinger

1шт.

4

90-2883T2

DAMPER

- vibration, used when equipped with slinger

1шт.

5

90-4389T1

SLINGER

- flywheel, if equipped

1шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Used when not equipped with slinger

12шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Used when equipped with slinger

12шт.

7

426-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex, 7/16 NC x 1 inch, grade 8, used when not equipped with slinger

12шт.

7

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Used when equipped with slinger Hex, 3/8"-16 x 1", G8, Full Thd

12шт.

8

90-7116T1

COVER

- flywheel housing, lower

1шт.

10

90-7115T1

COVER

- flywheel housing, upper

1шт.

12

90-7521T1

SUPPORT

SHIELD - upper, drive shaft

1шт.

13

90-6743T1

SHIELD

- lower, drive shaft

1шт.

16

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

12шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

19

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

21

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

23

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8

2шт.

24

REF

INSTRUCTION

SHAFT ASSEMBLY - rear, intermediate shaft to rear axle, parts list Figure 6-88 for bearing and drive shaft

1шт.

25

90-1901T93

SHAFT ASSY.

SHAFT ASSEMBLY - drive, front axle (8C), transmission to front axle, parts list Figure 6-88

1шт.

26

90-7376T91

SHAFT

ASSEMBLY - drive, front axle (8C), transmission to hanger bearing, parts list Figure 6-88

1шт.
