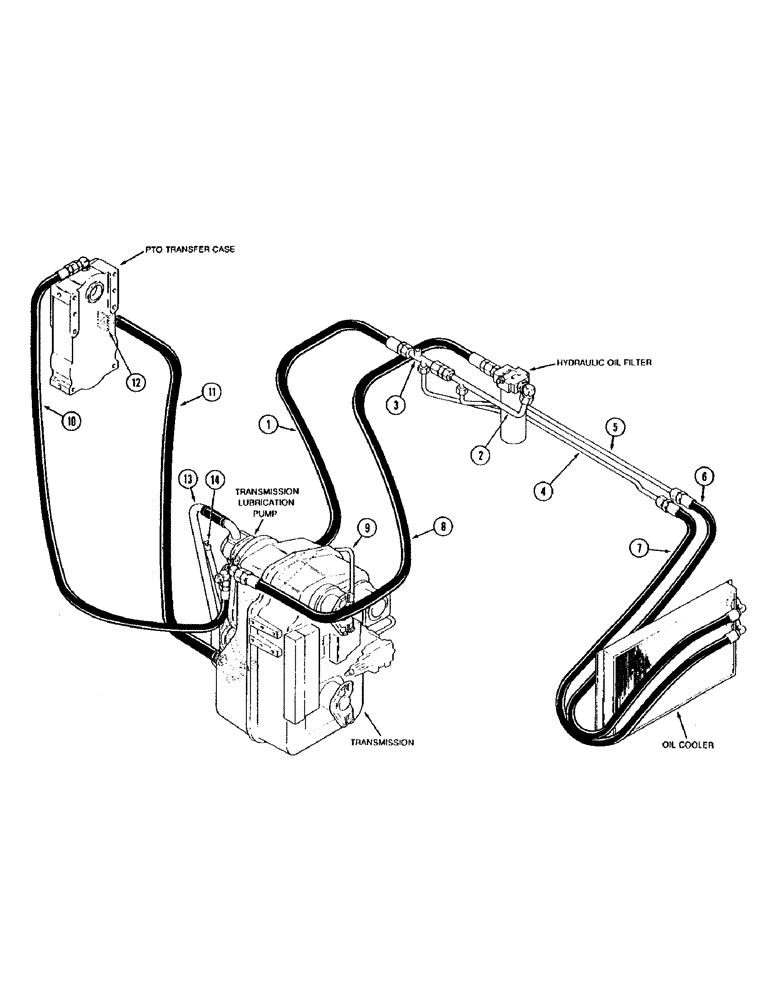

Запчасти Case IH 9280 (1-018) - LUBE HYDRAULICS SYNCHROSHIFT TRACTOR, PRIOR TO P.I.N. JCB0028400 (00) - PICTORIAL INDEX

1

Transmission Lubrication Supply Hose, Page 6-75

1шт.

2

Oil Filter Supply Tube, Page 6-75

1шт.

3

Transmission Lubrication Supply Check Valve Tube, Page 6-75

1шт.

4

Oil Cooler Supply Tube, Page 6-75

1шт.

5

Oil cooler Return Tube, Page 6-75

1шт.

6

Oil Cooler Return Hose, Page 6-75

1шт.

7

Oil cooler Supply Hose, Page 6-75

1шт.

8

Transmission Lubrication Supply Hose, Page 6-75

1шт.

9

Transmission Lubrication Tube, Page 6-75

1шт.

10

PTO Transfer Case Lubrication Hose, Page 6-79

1шт.

11

PTO Transfer Case Return Hose, Page 6-79

1шт.

12

PTO Transfer Case Adapter Tube, Page 6-79

1шт.

13

Transmission Lubricaiton Pump Tube, Page 6-75

1шт.

14

Transmission Fill Tube, Page 6-75

1шт.
