Запчасти Case IH 9280 (6-059Y) - SYNCHROSHIFT TRANSMISSION ASSEMBLY 4TH SHAFT ASSEMBLY (06) - POWER TRAIN

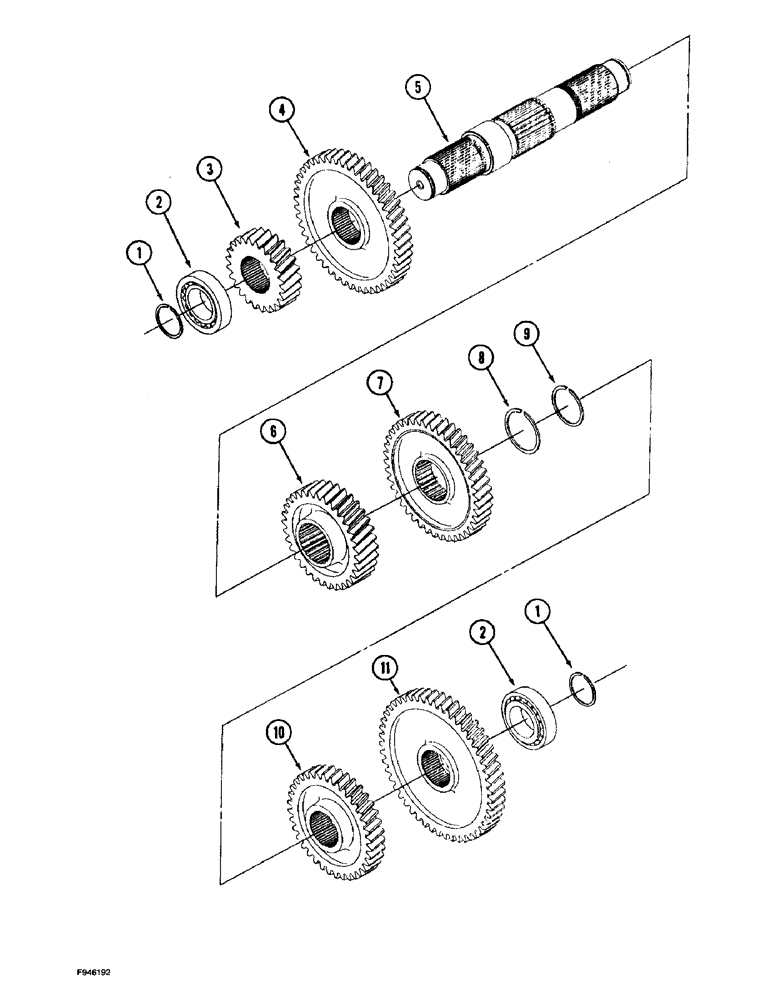

Схема запчастей Case IH 9280 - (6-059Y) - SYNCHROSHIFT TRANSMISSION ASSEMBLY 4TH SHAFT ASSEMBLY (06) - POWER TRAIN
6
11
5
1
2
10
3
4
1
2
9
7
8

Артикул

Название

Примечание

Количество

90-7775T91

TRANSMISSION

ASSEMBLY - mechanical shift, includes parts listed on Figures 6-59C - 6-61E, Includes: Ref. 1 - 11

1шт.

90-7986T91

SHAFT ASSY.

SHAFT ASSEMBLY - fourth, Includes: Ref. 1 - 11

1шт.

1

33-1823T1

RING, SNAP

RING - retaining, external, 2.5 mm

1шт.

1

33-1824T1

RING, SNAP

RING - retaining, external, 2.6 mm

1шт.

1

33-1825T1

RING, SNAP

RING - retaining, external, 2.7 mm

1шт.

1

33-1826T1

RING, SNAP

RING - retaining, external, 2.8 mm

1шт.

1

33-1827T1

RING, SNAP

RING - retaining, external, 2.9 mm

1шт.

1

33-1828T1

RING, SNAP

RING - retaining, external, 3.0 mm

1шт.

2

33-1676T1

TAPERED BEARING

BEARING - tapered roller, shaft

2шт.

3

90-7909T1

PINION

GEAR - drive, A range

1шт.

4

90-7910T1

PINION

GEAR - driven, first speed

1шт.

5

90-7911T1

PINION

SHAFT - center, fourth

1шт.

6

90-7912T1

PINION

GEAR - drive, B range

1шт.

7

90-7913T1

PINION

GEAR - driven, second speed

1шт.

8

S5090S00F

RING, SNAP

RING - retaining

1шт.

9

S5040S00F

RING

- retaining

1шт.

10

90-7914T1

PINION

GEAR - driven, third speed

1шт.

11

90-7915T1

PINION

GEAR - driven, D range

1шт.
