Запчасти Case IH 9280 (6-059W) - SYNCHROSHIFT TRANSMISSION ASSEMBLY 5TH SHAFT ASSEMBLY (06) - POWER TRAIN

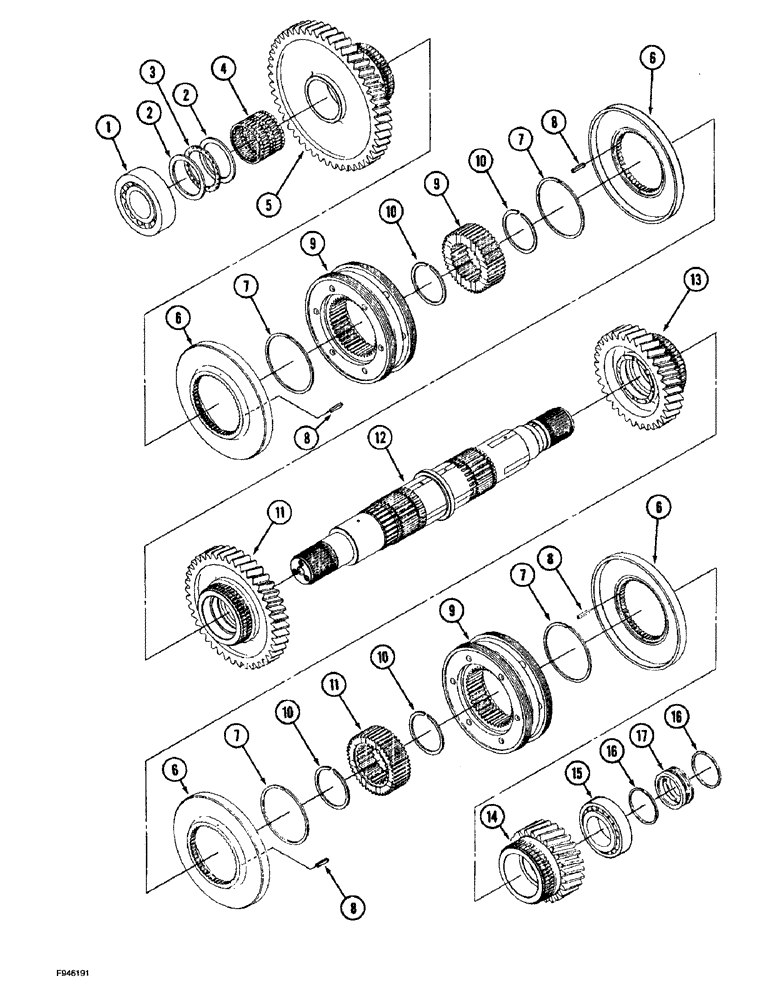

Схема запчастей Case IH 9280 - (6-059W) - SYNCHROSHIFT TRANSMISSION ASSEMBLY 5TH SHAFT ASSEMBLY (06) - POWER TRAIN
10
10
7
2
12
4
1
3
9
8
7
11
8
9
13
14
11
5
6
6
7
17
7
10
16
16
9
8
6
15
8
10
6
2

Артикул

Название

Примечание

Количество

90-7775T91

TRANSMISSION

ASSEMBLY - mechanical shift, includes parts listed on Figures 6-59C - 6-61E, Includes: Ref. 1 - 17

1шт.

90-7990T91

SHAFT ASSY.

SHAFT ASSEMBLY - fifth, Includes: Ref. 1 - 17

1шт.

1

33-1708T1

TAPERED BEARING

BEARING - tapered roller

1шт.

2

S5230S00F

BEARING WASHER

WASHER - thrust

2шт.

3

S5050S00F

THRUST BEARING

BEARING - thrust

1шт.

4

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

5

90-7902T1

PINION

GEAR - driven, A range

1шт.

6

90-7903T1

DISC

DISK - synchro, range

4шт.

7

90-7904T1

RING, SNAP

RING - retaining

4шт.

8

SM832508

PIN

- spring

16шт.

9

33-1831T1

SYNCHRONIZER

- range

2шт.

10

S5090S00F

RING, SNAP

RING - retaining

4шт.

11

90-7905T1

PINION

GEAR - driven, B range

1шт.

12

90-7906T1

SHAFT

- output

1шт.

13

90-7907T1

PINION

GEAR - driven, C range

1шт.

14

90-7908T1

PINION

GEAR - driven, D range

1шт.

15

33-1676T1

TAPERED BEARING

BEARING - tapered roller, shaft

1шт.

16

S4150S00F

RING

- sealing

2шт.

Included in Gasket Kit 90-7927T91

1шт.

17

33-1695T1

PISTON

- carrier, ring

1шт.

90-7927T91

GASKET KIT

KIT - gasket, transmission, includes all Ref. as indicated on Figures 6-59C - 6-61E

1шт.

Выбрано товаров: 21
