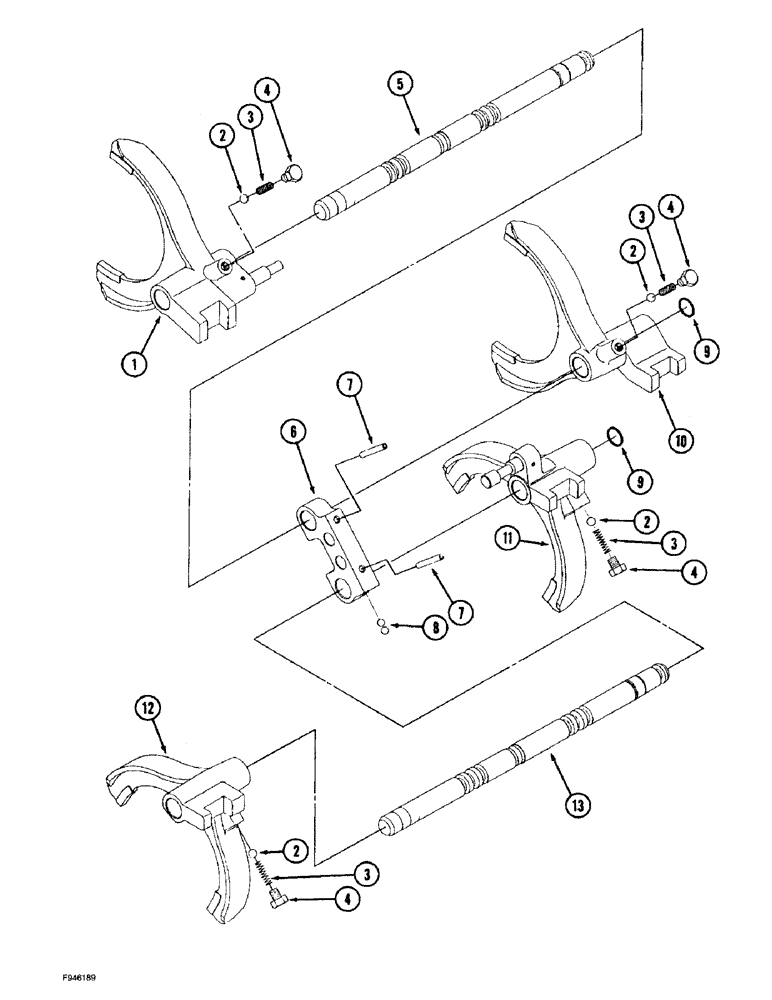

Запчасти Case IH 9280 (6-059S) - SYNCHROSHIFT TRANSMISSION ASSEMBLY SHIFTER FORK ASSEMBLY (06) - POWER TRAIN

90-7775T91

TRANSMISSION

ASSEMBLY - mechanical shift, includes parts listed on Figures 6-59C - 6-61E, Includes: Ref. 1 - 13

1шт.

1

90-7944T1

SHIFTER FORK

FORK - shift, first-reverse

1шт.

2

33-1757T1

BALL

- steel, fork detent

4шт.

3

33-1786T1

SPRING

detent ball

4шт.

4

33-1759T1

PLUG

detent spring

4шт.

5

90-7945T1

ROD

- shift, speed

1шт.

6

90-7946T1

ACTUATING PLATE

PLATE - interlock

1шт.

7

90-7947T1

PIN

- spring

2шт.

8

33-1756T1

BALL

- steel

2шт.

9

33-1745T1

GASKET

O-RING - seal, fork

2шт.

Included in Gasket Kit 90-7927T91

1шт.

10

90-7949T1

SHIFTER FORK

FORK - shift, second-third speeds

1шт.

11

90-7950T1

SHIFTER FORK

FORK - shift, C-D ranges

1шт.

12

90-7951T1

SHIFTER FORK

FORK - shift, A-B ranges

1шт.

13

90-7952T1

ROD

- shift, range

1шт.

90-7927T91

GASKET KIT

KIT - gasket, transmission, includes all Ref. as indicated on Figures 6-59C - 6-61E

1шт.
