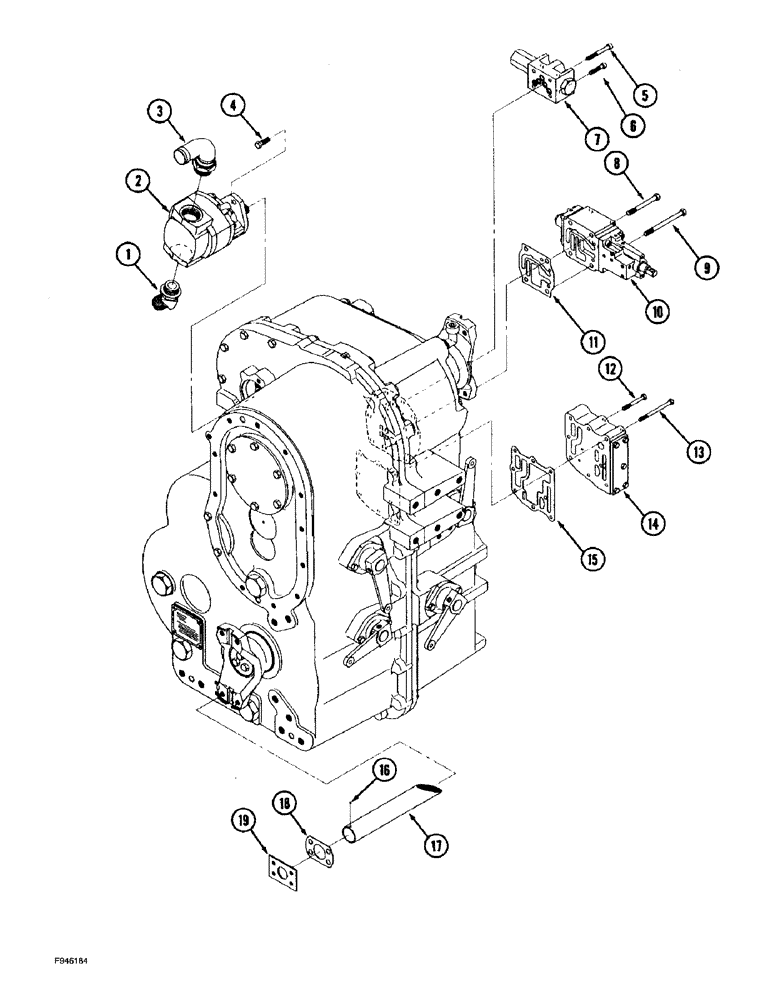

Запчасти Case IH 9280 (6-059G) - SYNCHROSHIFT TRANSMISSION ASSEMBLY VALVE & LUBE MOUNTING (06) - POWER TRAIN

90-7775T91

TRANSMISSION

ASSEMBLY - mechanical shift, includes parts listed on Figures 6-59C - 6-61E, Includes: Ref. 1 - 19

1шт.

1

31-418

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

ADAPTER, fitting

1шт.

2

33-1874T91

PUMP, HYDRAULIC

PUMP - lubrication, component parts not serviced separately

1шт.

3

31-1394

ELBOW

- hose stem, special

1шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.25 x 30 mm

2шт.

5

90-8007T1

SCREW

BOLT - socket head, special

2шт.

6

90-8008T1

SCREW

BOLT - socket head, special

2шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - lock out, parts list Figure 6-61E

1шт.

8

514-729

BOLT,Hex, M10 x 1.25 x 90mm, Cl 8.8

- hex, 10 - 1.25 x 90 mm, class 8.8

2шт.

9

514-739

BOLT,Hex, M10 x 1.25 x 120mm, Cl 8.8

- hex, 10 - 1.25 x 120 mm, class 8.8

2шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 6-61C

1шт.

11

90-8012T1

GASKET

- control valve

1шт.

Included in Gasket Kit 90-7927T91

1шт.

12

614-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 65 mm, class 8.8

5шт.

13

614-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 100 mm, class 8.8

3шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - regulator, parts list Figure 6-61A

1шт.

15

S1150S02F

GASKET

- regulator valve

1шт.

Included in Gasket Kit 90-7927T91

1шт.

16

S14701960

BALL,3.968mm OD

- steel

1шт.

17

33-1561T1

TUBE

- suction

1шт.

18

S1620S01F

GASKET

- suction tube

1шт.

Included in Gasket Kit 90-7927T91

1шт.

19

S1700S00F

LARGE PLATE

PLATE - suction tube retainer

1шт.

90-7927T91

GASKET KIT

KIT - gasket, transmission, includes all Refs. as indicated on Figures 6-59G- 6-61E

1шт.
