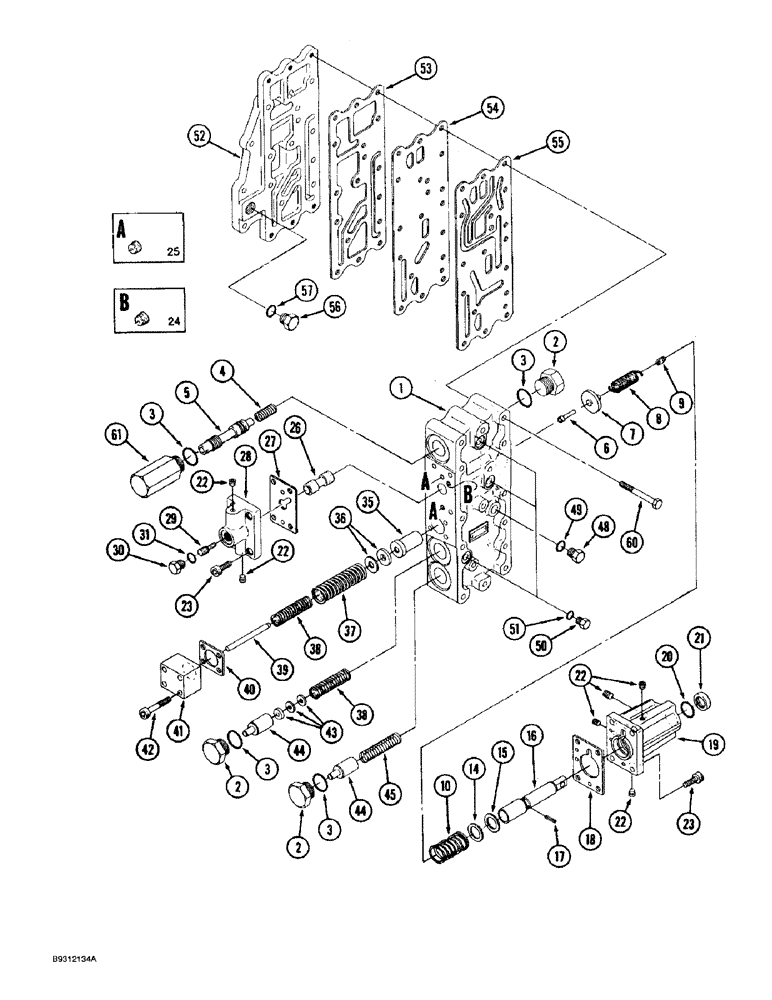

Запчасти Case IH 9280 (6-058) - SYNCHROMESH TRANSMISSION ASSEMBLY CONTROL VALVE (06) - POWER TRAIN

90-7373T91

TRANSMISSION

ASSEMBLY - SynchroMesh, includes parts listed on Figures 6-34 - 6-58, Includes: Ref. 1 - 61

1шт.

33-1787T91

VALVE

ASSEMBLY - control, transmission, Includes: Ref. 1 - 61

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order 33-1787T91

1шт.

2

33-1790T1

PLUG

valve ports

4шт.

3

33-1789T1

GASKET

O-RING - plug

4шт.

4

33-1791T1

SPRING

- return

1шт.

5

33-1792T1

PISTON

SPOOL, lock-out

1шт.

6

33-1793T1

PIN

- seat

1шт.

7

S6060S00F

SPRING SEAT

SEAT - spring

1шт.

8

S6210S00F

SPRING

- tension

1шт.

9

S6080S00F

LINK, CONNECTING

LINK - connecting

1шт.

10

S6150S00F

SPRING

- compression

1шт.

14

S6140S00F

SHIM,1.0mm Thk

(30 mm) 1.0mm Thk

1шт.

15

S6200S00F

SPACER

31 x 1.2 mm thick

1шт.

16

S6100S00F

HOUSING

STEM - control

1шт.

17

S6130S00F

PIN, ROLL

PIN - roll

1шт.

18

33-1794T1

GASKET

- control cover

1шт.

Included in Gasket Kit 33-1822T91

1шт.

19

33-1795T1

CAP

COVER - control

1шт.

20

S6120S00F

O-RING

- control stem

1шт.

Included in Gasket Kit 33-1822T91

1шт.

21

S6110S00F

OIL SEAL

- control stem

1шт.

Included in Gasket Kit 33-1822T91

1шт.

22

S6220S00F

PLUG

port

9шт.

23

S6260S00F

SCREW

BOLT - socket head, special

8шт.

24

S6240S00F

ORIFICE

PLUG - orifice, large hole

1шт.

25

S6230S00F

ORIFICE

PLUG - orifice, small hole

2шт.

26

S6040S00F

SPOOL

- modulator

1шт.

27

33-1796T1

GASKET

- cover

1шт.

Included in Gasket Kit 33-1822T91

1шт.

28

33-1797T1

COVER

- valve

1шт.

29

S6010S00F

SPOOL

- reducing

1шт.

30

S6170S00F

PLUG

- hex, spool

1шт.

31

S6180S00F

O-RING

plug

1шт.

Included in Gasket Kit 33-1822T91

1шт.

35

S7030S01F

VALVE

- regulator, replaces S7030S00F

1шт.

36

S7010S00F

SHIM,.039" Thk

1шт.

37

S7120S00F

SPRING

- compression, outer

1шт.

38

S7050S00F

SPRING

- compression, inner

2шт.

39

S7020S00F

STEM

ROD - pressure

1шт.

40

33-1798T1

GASKET

- cover

1шт.

41

33-1799T1

COVER

- regulator

1шт.

42

33-1800T1

BOLT

BOLT - hex socket, special

4шт.

43

S7080S00F

SHIM,.031" Thk

1шт.

44

S7060S00F

VALVE

- lube, regulator

1шт.

45

S7070S00F

SPRING

- compression

1шт.

48

S1210S00F

PLUG

- hex, O-ring boss

1шт.

49

S1200S00F

O-RING

plug

1шт.

50

S1030S00F

PLUG

- hex, O-ring boss

1шт.

51

S1040S00F

O-RING

plug

1шт.

Included in Gasket Kit 33-1822T91

1шт.

52

33-1803T1

LARGE PLATE

PLATE - mounting, valve

1шт.

53

33-1804T1

GASKET

- mounting, valve

1шт.

Included in Gasket Kit 33-1822T91

1шт.

54

33-1805T1

LARGE PLATE

PLATE - gasket

1шт.

55

33-1806T1

GASKET

- valve

1шт.

Included in Gasket Kit 33-1822T91

1шт.

56

S1210S00F

PLUG

- hex, O-ring boss

1шт.

57

S1200S00F

O-RING

plug

1шт.

Included in Gasket Kit 33-1822T91

1шт.

60

SM8120885

BOLT

BOLT - hex, 8 mm - 1.25 x 85 mm

6шт.

61

33-1820T1

PLUG

- hex cap

1шт.

33-1822T91

GASKET KIT

KIT - gasket, complete transmission, includes all Refs. as indicated on Figures 6-34 - 6-59C

1шт.
