Запчасти Case IH 9280 (6-054) - SYNCHROMESH TRANSMISSION ASSEMBLY SPEED SHAFT ASSEMBLY (06) - POWER TRAIN

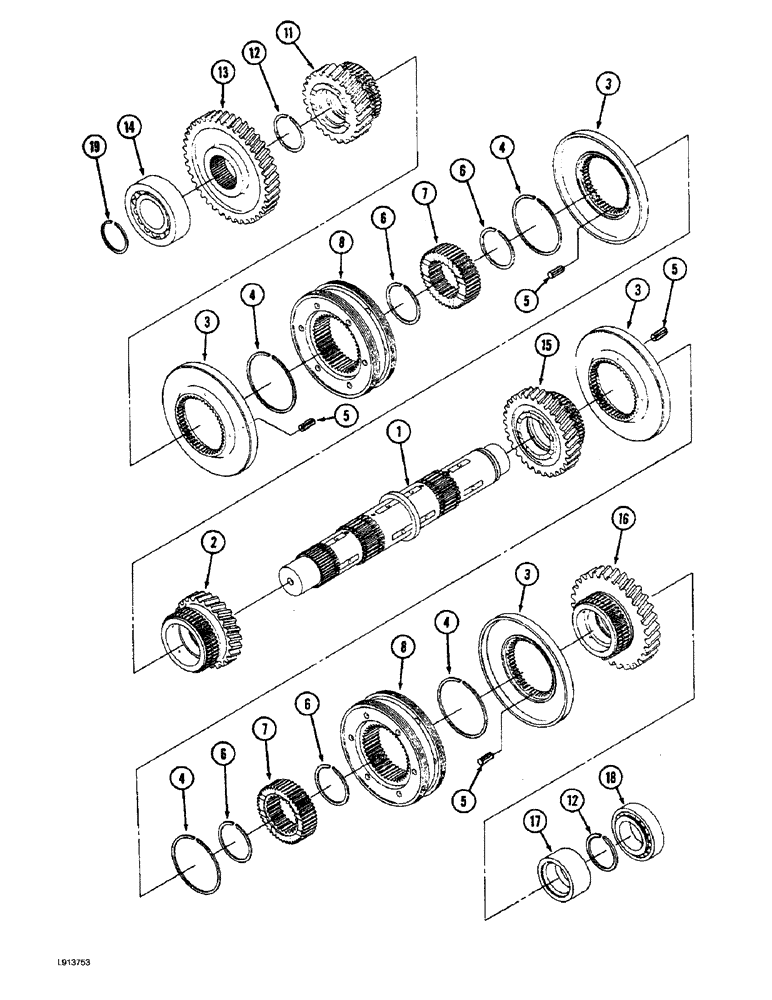

Схема запчастей Case IH 9280 - (6-054) - SYNCHROMESH TRANSMISSION ASSEMBLY SPEED SHAFT ASSEMBLY (06) - POWER TRAIN
13
8
2
19
5
3
3
6
1
6
6
12
4
17
5
11
6
16
12
3
4
15
5
14
18
7
5
4
7
4
3
8

Артикул

Название

Примечание

Количество

90-7373T91

TRANSMISSION

ASSEMBLY - SynchroMesh, includes parts listed on Figures 6-34- 6-58, Includes: Ref. 1 - 19

1шт.

1

33-1675T4

SHAFT

- speed

1шт.

Replace 33-1675T4 Shaft and 33-1677T3 Spacer as a set on tractors prior to Transmission Serial Number H1C-021 if either part needs replacement.

1шт.

2

33-1688T2

PINION

GEAR - reverse

1шт.

3

33-1779T1

DISC

- sleeve, synchro

4шт.

4

33-1682T1

RING, SNAP

RING - retaining

4шт.

5

SM832508

PIN

- spring

16шт.

6

S5090S00F

RING, SNAP

RING - retaining

4шт.

33-1830T1

SYNCHRONIZER

- speed, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - speed, synchro

2шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - synchro, speed

2шт.

11

33-1687T1

PINION

GEAR - speed, 1st

1шт.

12

S5040S00F

RING

- retaining

2шт.

13

33-1686T2

PINION

GEAR - driven, speed shaft

1шт.

14

33-1678T1

TAPERED BEARING,65mm ID x 120mm OD x 32.75mm W

BEARING - tapered

1шт.

15

33-1689T1

PINION

GEAR - speed, 2nd

1шт.

16

33-1690T1

PINION

GEAR - speed, 3rd

1шт.

17

33-1677T3

SPACER

- bearing and gear

1шт.

Replace 33-1675T4 Shaft and 33-1677T3 Spacer as a set on tractors prior to Transmission Serial Number H1C-021 if either part needs replacement.

1шт.

18

33-1676T1

TAPERED BEARING

BEARING - tapered roller

1шт.

19

33-1823T1

RING, SNAP

RING - retaining, external, 2.5 mm

1шт.

19

33-1824T1

RING, SNAP

RING - retaining, external, 2.6 mm

1шт.

19

33-1825T1

RING, SNAP

RING - retaining, external, 2.7 mm

1шт.

19

33-1826T1

RING, SNAP

RING - retaining, external, 2.8 mm

1шт.

19

33-1827T1

RING, SNAP

RING - retaining, external, 2.9 mm

1шт.

19

33-1828T1

RING, SNAP

RING - retaining, external, 3.0 mm

1шт.

Выбрано товаров: 26
