Запчасти Case IH 9280 (6-048) - SYNCHROMESH TRANSMISSION ASSEMBLY SHIFTER FORK ASSEMBLY (06) - POWER TRAIN

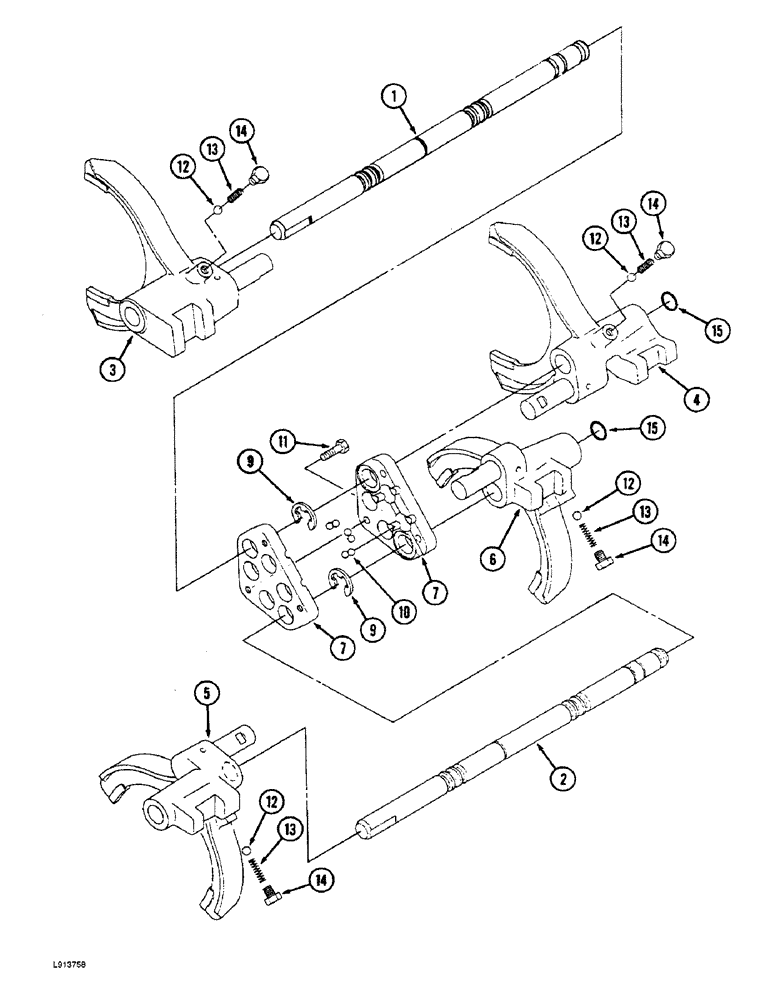

Схема запчастей Case IH 9280 - (6-048) - SYNCHROMESH TRANSMISSION ASSEMBLY SHIFTER FORK ASSEMBLY (06) - POWER TRAIN
13
10
5
12
13
14
1
7
13
12
14
12
9
14
6
15
4
3
9
12
15
11
13
2
7
14

Артикул

Название

Примечание

Количество

90-7373T91

TRANSMISSION

ASSEMBLY - SynchroMesh, includes parts listed on Figures 6-34 - 6-58, Includes: Ref. 1 - 15

1шт.

1

33-1743T1

STEM

ROD - shift, speed

1шт.

2

33-1744T1

STEM

ROD - shift, range

1шт.

3

33-1729T91

SHIFTER FORK

FORK - shift, 1st and reverse

1шт.

4

33-1732T91

SHIFTER FORK

FORK - shift, 2nd and 3rd

1шт.

5

33-1735T91

SHIFTER FORK

FORK - shift, A-B range

1шт.

6

33-1738T91

SHIFTER FORK

FORK - shift, C-D range

1шт.

7

33-1741T1

PLATE

HOUSING - interlock

2шт.

9

SM922524

RING, SNAP

E-RING, shaft retaining

2шт.

10

33-1756T1

BALL

- steel, interlock

6шт.

11

SM8124035

BOLT

BOLT - hex, 10 mm - 1.25 x 35 mm

3шт.

12

33-1757T1

BALL

- steel, fork detent

4шт.

13

33-1786T1

SPRING

detent ball

4шт.

14

33-1759T1

PLUG

detent spring

4шт.

15

33-1745T1

GASKET

O-RING - seal, fork

2шт.

Included in Gasket Kit 33-1822T91

1шт.

33-1822T91

GASKET KIT

KIT - gasket, complete transmission, includes all items as indicated on Figures 6-34 - 6-58

1шт.

Выбрано товаров: 17
