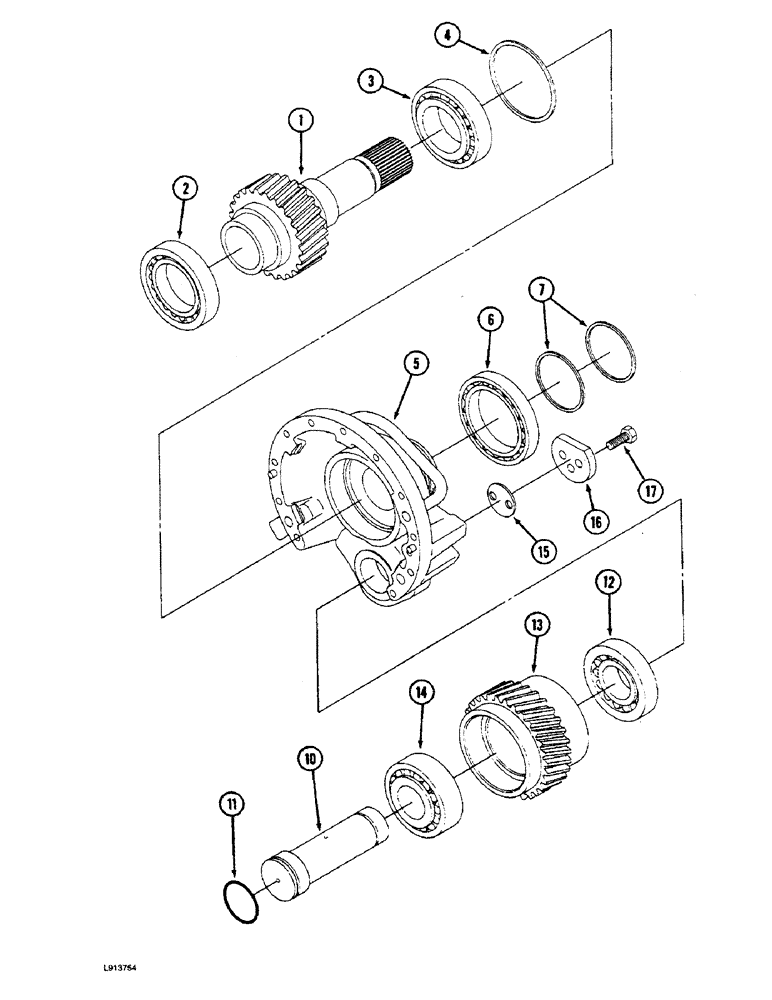

Запчасти Case IH 9280 (6-046) - SYNCHROMESH TRANSMISSION ASSEMBLY CLUTCH DRIVE ASSEMBLY (06) - POWER TRAIN

90-7373T91

TRANSMISSION

ASSEMBLY - SynchroMesh, includes parts listed on Figures 6-34 - 6-58, Includes: Ref. 1 - 17

1шт.

1

33-1667T1

GEAR SHAFT

GEAR - input, clutch

1шт.

2

33-1669T1

TAPERED BEARING

BEARING - tapered roller

1шт.

3

33-1668T1

TAPERED BEARING

BEARING - tapered

1шт.

4

33-1621T1

SHIM

0.10 mm thick, bearing

1шт.

4

33-1622T1

SHIM

0.15 mm thick, bearing

1шт.

4

33-1623T1

SHIM

0.30 mm thick, bearing

1шт.

4

33-1624T1

SHIM

0.51 mm thick, bearing

1шт.

4

33-1625T1

SHIM

0.71 mm thick, bearing

1шт.

5

33-1638T2

HOLDER

SUPPORT - clutch

1шт.

Replace 33-1600T2 Housing (Ref. 1, Fig. 6-41) and 33-1638T2 Support as a set on tractors with Transmission Serial Numbers H1C-001 through H1D-036 if either part needs replacement.

1шт.

6

33-1666T1

BEARING, BALL

BEARING - ball

1шт.

7

33-1637T1

SEALING RING

RING - seal

2шт.

Included in Gasket Kit 33-1822T91

1шт.

10

33-1671T1

SHAFT

- idler

1шт.

11

33-1673T1

GASKET

O-RING - shaft

1шт.

Included in Gasket Kit 33-1822T91

1шт.

12

33-1781T1

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

BEARING - tapered

1шт.

13

33-1670T1

PINION

GEAR - idler

1шт.

14

33-1672T1

TAPERED BEARING

BEARING - tapered

1шт.

15

33-1626T1

SHIM

0.10 mm thick, bearing

1шт.

15

33-1627T1

SHIM

0.15 mm thick, bearing

1шт.

15

33-1628T1

SHIM

0.30 mm thick, bearing

1шт.

16

33-1674T1

WASHER

PLATE - retainer

1шт.

17

SM8124230

BOLT

BOLT - hex, 12 mm - 1.25 x 30 mm

2шт.

33-1822T91

GASKET KIT

KIT - gasket, complete transmission, includes all items as indicated on Figures 6-34 - 6-58

1шт.
