Запчасти Case IH 9280 (6-044) - SYNCHROMESH TRANSMISSION ASSEMBLY PUMP DRIVE ASSEMBLY (06) - POWER TRAIN

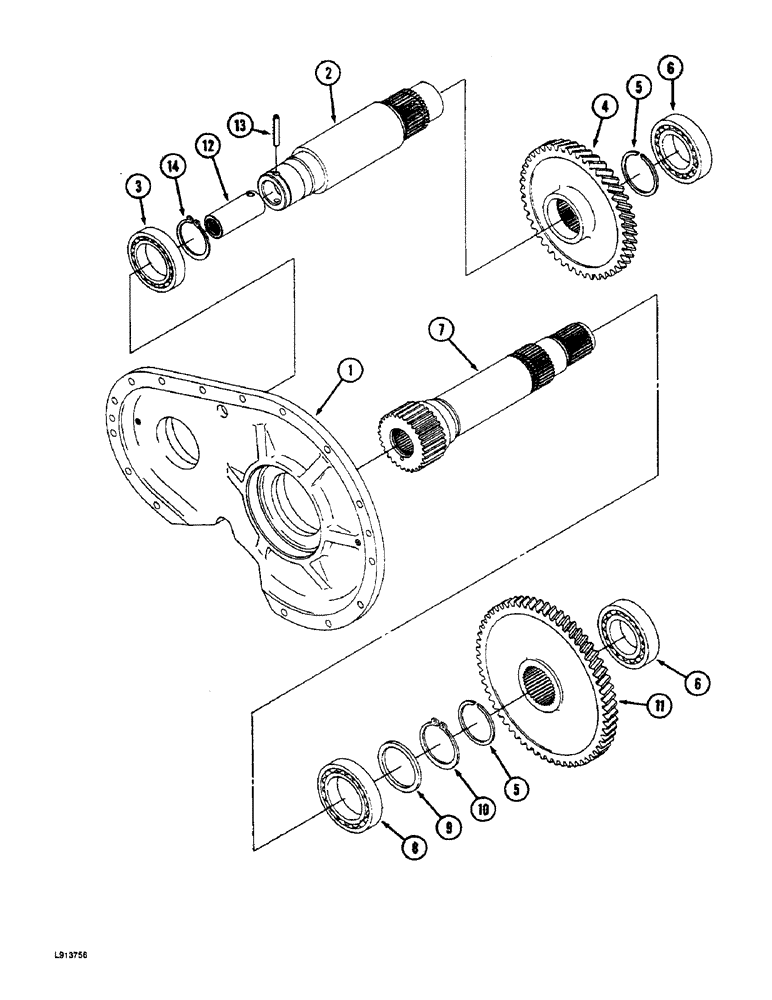

Схема запчастей Case IH 9280 - (6-044) - SYNCHROMESH TRANSMISSION ASSEMBLY PUMP DRIVE ASSEMBLY (06) - POWER TRAIN
9
10
12
13
11
6
5
7
2
1
8
14
3
4
5
6

Артикул

Название

Примечание

Количество

90-7373T91

TRANSMISSION

ASSEMBLY - SynchroMesh, includes parts listed on Figures 6-34 - 6-58, Includes: Ref. 1 - 14

1шт.

1

33-1617T1

COVER

- counter shaft

1шт.

2

33-1818T1

SHAFT

- pump

1шт.

3

33-1614T1

BEARING, BALL

BEARING - ball

1шт.

4

33-1608T1

PINION

GEAR - driven, pump

1шт.

5

S2240S00F

RING, SNAP

RING - retaining

2шт.

6

33-1763T1

BEARING, BALL,60mm ID x 95mm OD x 18mm W

BEARING - ball, front

2шт.

7

33-1607T1

SHAFT

- input

1шт.

8

33-1606T1

BEARING, BALL

BEARING - ball, rear

1шт.

9

33-1605T1

COLLAR

RING - retainer

1шт.

10

SM922165

RING, SNAP

RING - snap

1шт.

11

33-1602T1

PINION

GEAR - drive, pump

1шт.

12

33-1819T1

COUPLING

COUPLER - shaft

1шт.

13

SM830850

SPRING

PIN - spring

1шт.

14

SM922156

RING, SNAP

RING - snap

1шт.

Выбрано товаров: 15
