Запчасти Case IH 9280 (6-028) - POWER SHIFT TRANSMISSION ASSEMBLY REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN

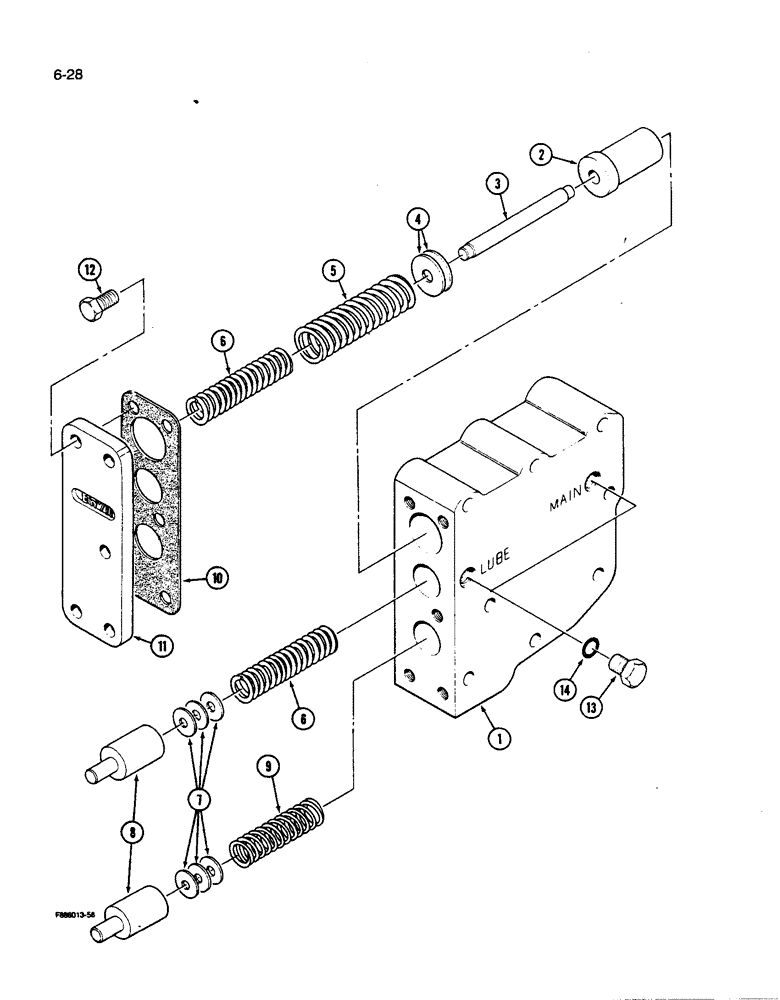

Схема запчастей Case IH 9280 - (6-028) - POWER SHIFT TRANSMISSION ASSEMBLY REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN
12
8
2
4
11
14
13
5
3
6
9
7
10
1
6

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - power shift (Continued), Includes: Ref. 1 - 14

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S7000S00F

VALVE

VALVE ASSEMBLY - regulator, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve

1шт.

2

S7030S00F

VALVE

VALVE - regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

SHIM, .039" Thk

1шт.

5

S7120S00F

SPRING

SPRING - compression

1шт.

6

S7050S00F

SPRING

SPRING - compression

2шт.

7

S7080S00F

SHIM,.031" Thk

SHIM, .031" Thk

1шт.

8

S7060S00F

VALVE

VALVE - lube

2шт.

9

S7070S00F

SPRING

SPRING - compression

1шт.

10

S7090S00F

GASKET

GASKET - valve cover

1шт.

Included in Gasket Kit 33-1559T1

1шт.

11

S7110S00F

COVER

COVER - valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, 8 mm - 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

PLUG - oil ports, Includes: Ref. 14

2шт.

14

S1040S00F

O-RING

O-RING - plug

2шт.

33-1559T1

GASKET

GASKET KIT - transmission, Includes: Ref. 10

1шт.

Выбрано товаров: 20
