Артикул
Название
Примечание
Количество
90-7016T91
GEARBOX ASSY
TRANSMISSION ASSEMBLY - power shift (Continued), Includes: Ref. 1 - 25
1шт.
313686A1R
REMAN-TRANSMISSION
Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.
1шт.
313686A1C
CORE-TRANSMISSION
Return Part Number
1шт.

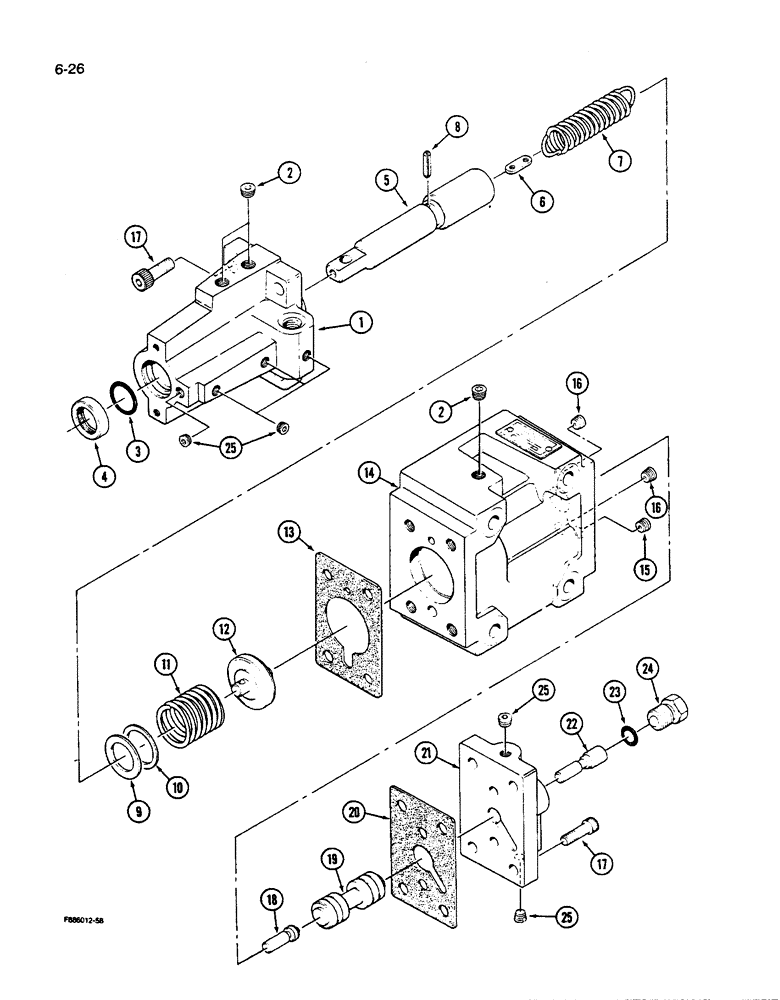

S6000S00F
VALVE
VALVE ASSEMBLY - clutch control, Includes: Ref. 1 - 25
1шт.
1
S6090S00F
HOUSING
COVER - control stem
1шт.
2
STX99700F
PLUG
PLUG - hex, stem cover port
3шт.
3
S6120S00F
O-RING
O-RING - control stem
1шт.
Included in Gasket Kit 33-1559T1
1шт.
4
S6110S00F
OIL SEAL
SEAL - control stem
1шт.
Included in Gasket Kit 33-1559T1
1шт.
5
S6100S00F
HOUSING
STEM - control
1шт.
6
S6080S00F
LINK, CONNECTING
LINK - connecting
1шт.
7
S6210S00F
SPRING
SPRING - tension
1шт.
8
S6130S00F
PIN, ROLL
PIN - roll
1шт.
9
S6200S00F
SPACER
SPACER - 31 x 1.2 mm
1шт.
10
S6140S00F
SHIM,1.0mm Thk
SHIM, (30 mm) 1.0mm Thk
1шт.
11
S6150S00F
SPRING
SPRING - compression
1шт.
12
S6060S00F
SPRING SEAT
SEAT - spring
1шт.
13
S6070S00F
GASKET
GASKET - cover, control stem
1шт.
Included in Gasket Kit 33-1559T1
1шт.
14
S6050S00F
HOUSING
BODY - modulator
1шт.
15
S6240S00F
ORIFICE
PLUG - orifice
1шт.
16
S6230S00F
ORIFICE
PLUG - orifice
2шт.
17
S6260S00F
SCREW
BOLT - socket head
8шт.
18
S6160S00F
PIN
PIN - spool
1шт.
19
S6040S00F
SPOOL
SPOOL - modulator
1шт.
20
S6030S00F
GASKET
GASKET - cover, valve
1шт.
Included in Gasket Kit 33-1559T1
1шт.
21
S6020S00F
COVER
COVER - valve
1шт.
22
S6010S00F
SPOOL
SPOOL - reducing
1шт.
23
S6180S00F
O-RING
O-RING - plug
1шт.
Included in Gasket Kit 33-1559T1
1шт.
24
S6170S00F
PLUG
PLUG - valve cover
1шт.
25
S6220S00F
PLUG
PLUG - valve cover
6шт.
33-1559T1
GASKET
GASKET KIT - transmission, Includes: Ref. 3, 4, 13, 20 and 23
1шт.
Выбрано товаров: 35
