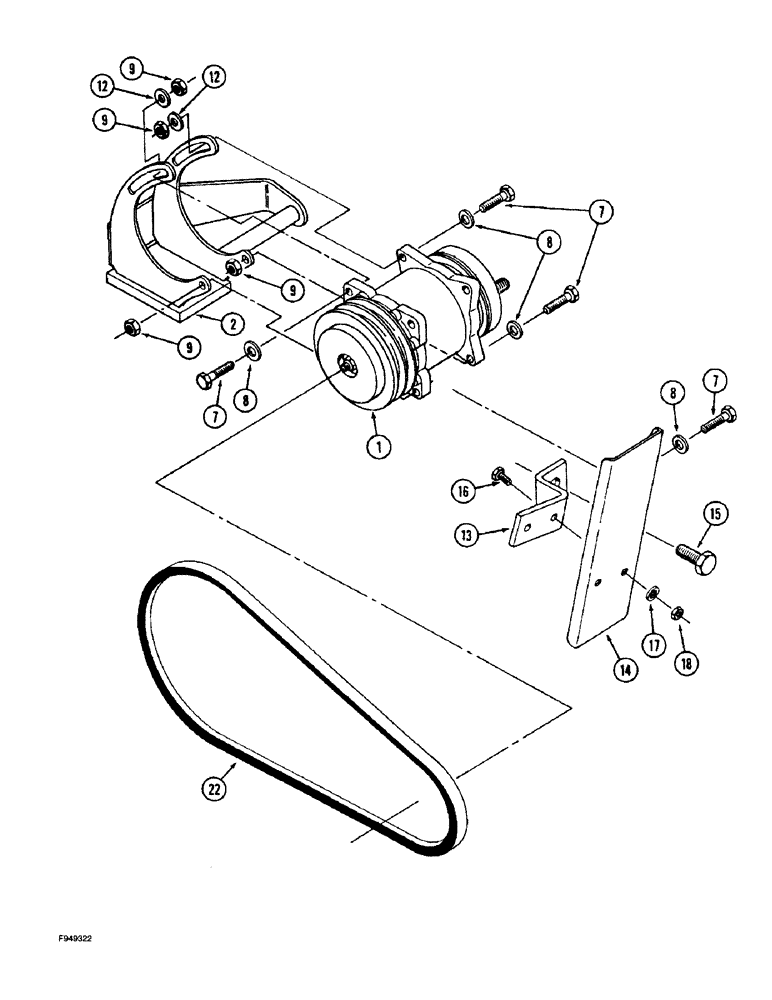

Запчасти Case IH 9280 (9-102) - CAB AIR CONDITIONING COMPRESSOR MOUNTING & DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning, see Figure 9-104 or 9-105A for correct assembly and parts list

1шт.

2

90-7735T1

SUPPORT

MOUNT - compressor

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

7

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

9

825-1410

NUT,M10, Cl 8

4шт.

12

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

2шт.

13

90-6871T1

SUPPORT

BRACKET - mounting, shield

1шт.

14

90-6872T1

SHIELD

- compressor

1шт.

15

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

1шт.

16

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

18

27254R1

NUT

- hex, 5/16 inch NC, grade 8

2шт.

22

1-6864

V-BELT,0.53" W x 39.25" L

Air conditioning compressor, 0.56" W x 39.25" L

1шт.

22

90-7190T1

V-BELT,0.56" W x 40.25" L

Air conditioning compressor (Replaces 1-6864) 0.56" W x 40.25" L

1шт.
