Запчасти Case IH 9280 (9-029A) - HOOD & SUPPORT P.I.N. JEE0033501 & AFTER (09) - CHASSIS/ATTACHMENTS

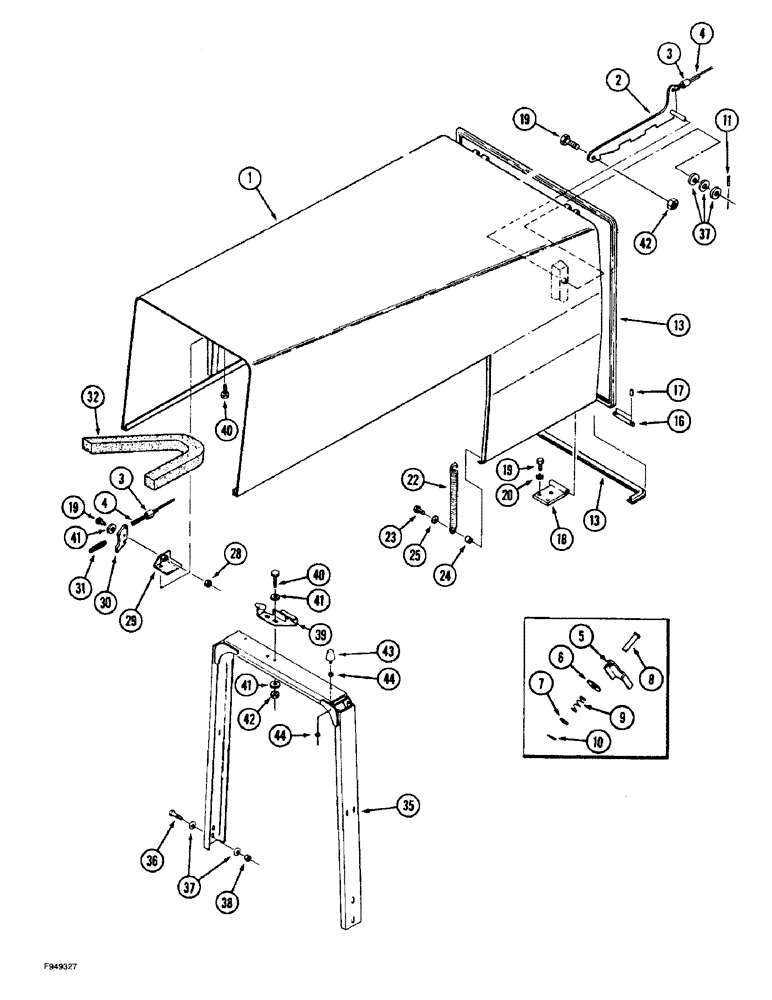

Схема запчастей Case IH 9280 - (9-029A) - HOOD & SUPPORT P.I.N. JEE0033501 & AFTER (09) - CHASSIS/ATTACHMENTS
35
19
25
41
5
23
19
43
44
31
16
44
7
40
37
8
32
39
28
9
10
41
13
42
40
4
4
13
3
42
11
2
20
30
37
36
22
17
3
19
1
18
29
24
6
38
41

Артикул

Название

Примечание

Количество

1

70-6601T1

HOOD ASSY.

HOOD - engine

1шт.

2

70-6730T1

LATCH

- open hood retaining

1шт.

3

70-5269T1

FERRULE

- wire rope

2шт.

4

70-6732T1

ROPE

- wire, 178 inch (4521 mm) long, cut from 70-5252T1 bulk rope, see below

1шт.

5

70-6308T1

LATCH

- hood

1шт.

6

19-6154

WASHER

- flat, nylon, 3/8 x 1-1/4 x 1/16 inch

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

9

60-6422T1

SPRING

- compression

1шт.

10

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

13

70-5263T1

SEAL

- foam, 43 inch (1092 mm) long, cut from 70-5259T1X bulk seal, see below

5шт.

16

70-4262T2

PIN,12.7mm OD x 185.67mm L

hood hinge

2шт.

17

9415236

PIN, ROLL

PIN, 1/8 x 3/4 inch

4шт.

18

70-4263T1

HINGE

- hood

2шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

6шт.

22

19-6261

SPRING

assist, hood opening

2шт.

23

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch, grade 8

2шт.

24

2-8012T1

SPACER

- spring retainer

2шт.

25

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat

2шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

29

70-5912T2

MOUNTING PARTS

MOUNT - latch

1шт.

30

70-6178T1

LATCH

- release

1шт.

31

A163012

SPRING

latch return

1шт.

32

60-6705T1

FOAM

SEAL - foam, rear hood

1шт.

35

70-6501T1

SUPPORT

hood

1шт.

36

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

37

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

11шт.

38

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

39

70-6389T1

BRACKET

- hood retaining latch

1шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

41

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

5шт.

42

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

43

N7673

BUMPER

- rubber

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

70-5252T1

ROPE

- wire, bulk, 300 inch (7620 mm) long

1шт.

70-5259T1X

SEAL

- foam, 120 inch (3048 mm) long

1шт.

Выбрано товаров: 38
