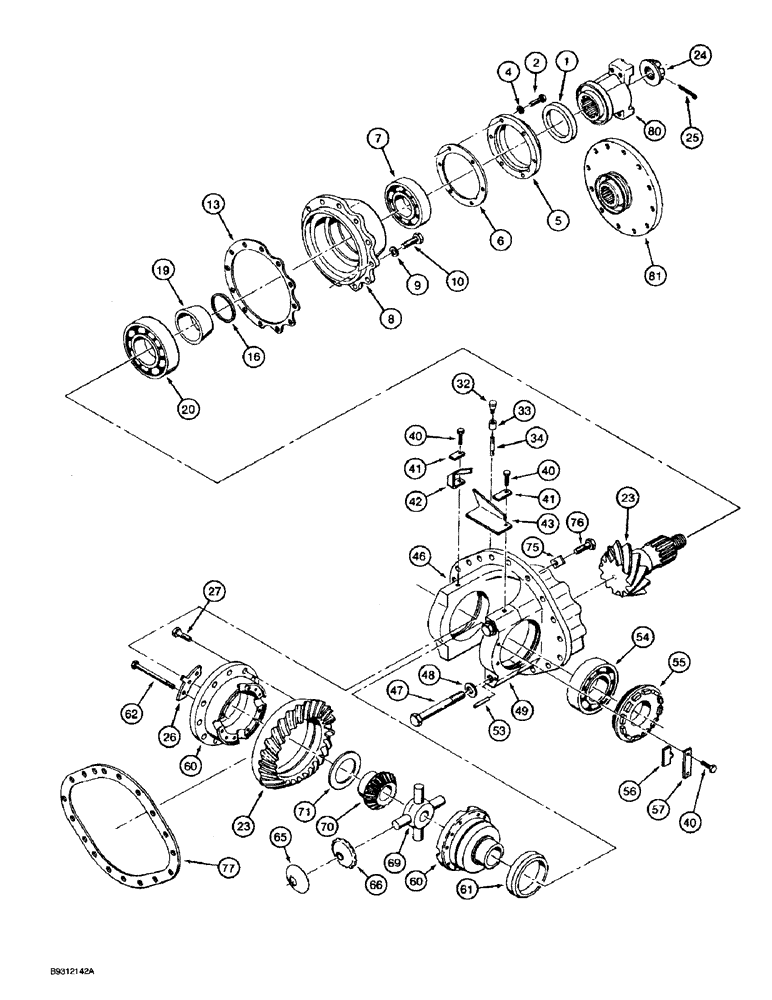

Запчасти Case IH 9280 (6-118) - STANDARD AXLE ASSEMBLY DIFFERENTIAL & CARRIER, (CONT) (06) - POWER TRAIN

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, K598.78 Series, Includes: Ref. 40 - 81 and 1 - 34 on Fig. 6-116

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, K598.60 Series, Includes: Ref. 40 - 81 and 1 - 34 on Fig. 6-116

1шт.

90-7233T91

DIFFERENTIAL

ASSEMBLY, front, Includes: Ref. 40 - 81

1шт.

90-7232T91

DIFFERENTIAL

ASSEMBLY, rear, Includes: Ref. 40 - 81

1шт.

40

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

8шт.

41

90-4492T1

LARGE PLATE

TAB - locking

2шт.

42

90-4491T1

LARGE PLATE

PLATE - oil baffle, front axle

1шт.

42

90-4490T1

LARGE PLATE

PLATE - oil baffle, rear axle

1шт.

43

90-4494T1

LARGE PLATE

PLATE - oil baffle, front axle

1шт.

43

90-4493T1

LARGE PLATE

PLATE - oil baffle, rear axle

1шт.

46

90-7231T1

HOUSING

CARRIER ASSEMBLY - differential, Includes: Ref. 47 - 49

1шт.

47

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

BOLT - hex, special

2шт.

48

90-4489T1

WASHER

- flat, special

2шт.

49

NSS

NOT SOLD SEPARAT

CAP - bearing retainer

1шт.

53

90-4485T1

DOWEL

PIN - dowel, 10 x 25 mm

1шт.

54

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - tapered roller

2шт.

55

16-1522

SLOTTED NUT

NUT - bearing retainer

2шт.

56

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

57

16-1524

LARGE PLATE

PLATE - locking

2шт.

90-7225T91

DIFFERENTIAL

ASSEMBLY - axle, front, Includes: Ref. 60 - 71

1шт.

90-7224T91

DIFFERENTIAL

ASSEMBLY - axle, rear, Includes: Ref. 60 - 71

1шт.

90-7227T91

CAGE ASSY.

HOUSING ASSEMBLY - differential, includes both halves, front axle, Includes: Ref. 60 - 62

1шт.

90-7226T91

CAGE ASSY.

HOUSING ASSEMBLY - differential, includes both halves, rear axle, Includes: Ref. 60 - 62

1шт.

60

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

61

90-7229T1

BAFFLE

- oil, front axle

1шт.

61

90-7228T1

BAFFLE

- oil, rear axle

1шт.

62

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

BOLT - hex, 12 mm - 1.5 x 90 mm, grade 10.9

12шт.

65

90-7161T1

WASHER

- thrust, cone, wear

4шт.

66

90-7160T1

PINION

GEAR - pinion

4шт.

69

90-7159T1

DIFF. SPIDER

SPIDER - gear, pinion

1шт.

70

16-1559

PINION

GEAR - pinion, side

2шт.

71

90-7162T1

WASHER

- pinion gear, 4.6 mm thick

2шт.

75

16-1520

WASHER

PLATE - locking, 12 x 25 mm

12шт.

75

16-1521

WASHER

PLATE - locking, 12 x 30 mm

6шт.

76

40-1102

SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9

BOLT - hex, 12 x 40 mm, grade 10.9

18шт.

77

B17576

GASKET MAKER FLUID

SEALANT - gasket, RTV no. 595, clear, 300 ml tube, replaces 16-1531 differential gasket

1шт.

80

1-6763

YOKE

- rear

1шт.

81

90-7384T1

YOKE

- front, flanged

1шт.
