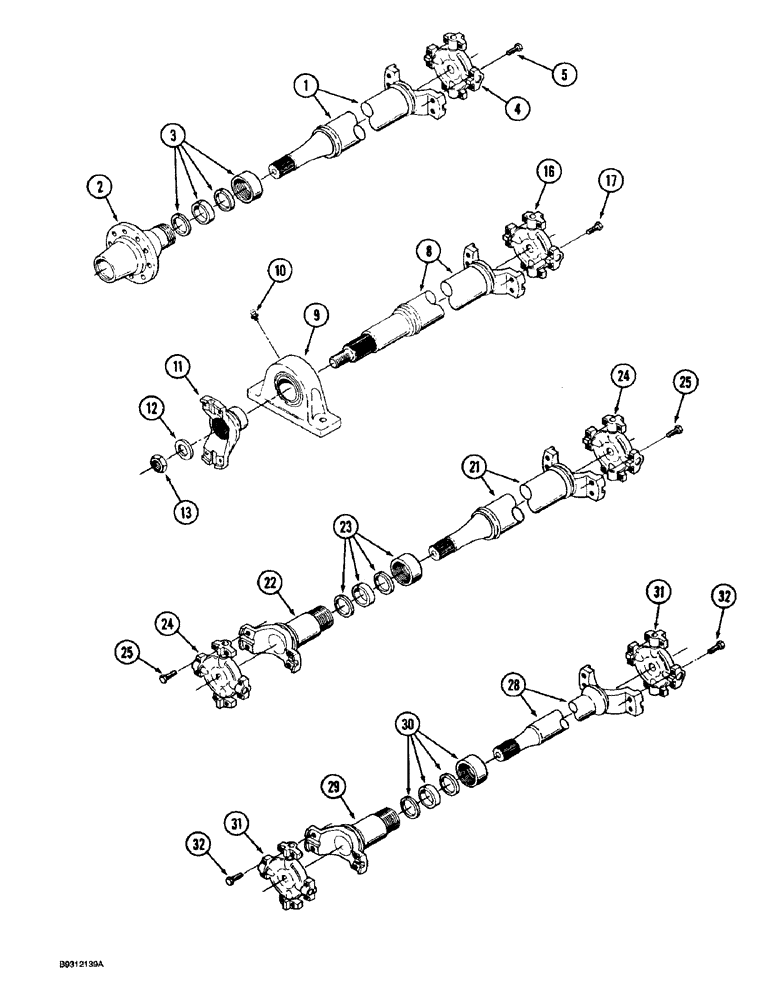

Запчасти Case IH 9280 (6-090) - DRIVE SHAFT ASSEMBLY SYNCHROMESH TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7382T91
SHAFT
ASSEMBLY - drive, engine to transmission (8C), Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke
1шт.
2
NSS
NOT SOLD SEPARAT
SHAFT - flanged
1шт.
3
2-3842T1
SEAL RETAINER
SEAL ASSEMBLY - shaft retainer
1шт.
4
1-9994T3
SPIDER ASSY.
SPIDER - shaft, 8C
1шт.
5
428-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
- hex, 1/2 NF x 2 inch, grade 8
8шт.
90-7628T91
SHAFT
ASSEMBLY - drive, intermediate shaft to rear axle (8C), Includes: Ref. 8 - 17
1шт.
90-7628T91 does not include bearing block and grease fitting (Refs. 9 and 10). Order these parts separately.
1шт.
8
NSS
NOT SOLD SEPARAT
SHAFT - tube
1шт.
9
90-7378T1
BEARING CARRIER
- block, shaft
1шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
1шт.
11
90-7379T1
YOKE
- shaft
1шт.
12
396-11131
WASHER,1 5/16" x 2 1/2" x .150"
- flat, 1-5/16 x 2-1/2 x 9/64 inch, hardened
1шт.
13
131-487
LOCK NUT,1 1/4"-18
NUT - heavy hex, self-locking, 1-1/4-18 inch
1шт.
16
1-9994T3
SPIDER ASSY.
SPIDER - shaft, 8C
1шт.
Lube Fitting - P/N 87414, Qty 3
1шт.
17
428-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
- hex, 1/2 NF x 2 inch, grade 8
8шт.
90-7376T91
SHAFT
ASSEMBLY - drive, front axle (8C), intermediate drive, transmission to rear axle shaft, Includes: Ref. 21 - 25
1шт.
21
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke
1шт.
22
NSS
NOT SOLD SEPARAT
SHAFT - tube
1шт.
23
2-3842T1
SEAL RETAINER
SEAL ASSEMBLY - shaft retainer
1шт.
24
1-9994T3
SPIDER ASSY.
SPIDER - shaft, 8C
2шт.
25
428-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
- hex, 1/2 NF x 2 inch, grade 8
8шт.
90-7375T91
SHAFT
ASSEMBLY - intermediate drive, drive, front axle (8C), Includes: Ref. 28 - 32
1шт.
28
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke
1шт.
29
NSS
NOT SOLD SEPARAT
SHAFT - tube
1шт.
30
2-3842T1
SEAL RETAINER
SEAL ASSEMBLY - shaft retainer
1шт.
31
1-9994T3
SPIDER ASSY.
SPIDER - shaft, 8C
2шт.
32
428-832
BOLT,Hex, 1/2" - 20 x 2", Gr 8
- hex, 1/2 NF x 2 inch, grade 8
8шт.
Выбрано товаров: 29
