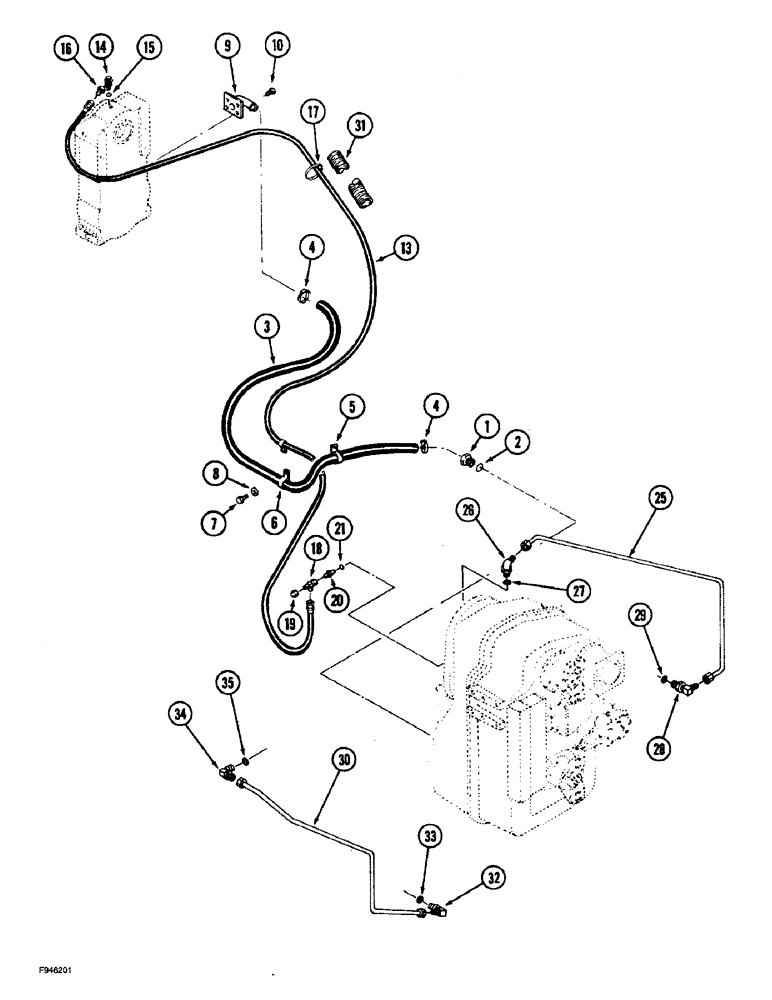

Запчасти Case IH 9280 (6-083A) - TRANSMISSION LUBE TRANSMISSION TO PTO TRANSFER CASE SYNCROSHIFT TRACTORS (06) - POWER TRAIN

1

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 2 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

3

31-2963

HOSE,1.00" ID x 115.00"

Suction, Transmission; Order S118383X, and Cut to Required Length; See Below 1.00" ID x 115.00"

1шт.

4

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

5

50-2037T1

STRAP

- tie

1шт.

6

31-2361

MOUNTING CLIP

CLAMP - P-type

1шт.

7

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

90-7256T1

FITTING

FLANGE - hose adapter, 1 inch hose end

1шт.

10

426-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 8

- hex, 7/16 NC x 5/8 inch, grade 8

4шт.

13

31-2908

HOSE

- lube, PTO valve to PTO housing

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

31-2537

FITTING

CONNECTOR - orificed

1шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

3шт.

18

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

19

218-755

CAP,37 Degree, 3/4"-16

1шт.

20

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 21

1шт.

25

50-3543T2

TUBE

- lubrication, regulator valve to PTO valve

1шт.

26

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

50-3544T1

TUBE

- lubrication, range selector valve to PTO control valve

1шт.

31

50-3220T1

CONDUIT

- hose, flex, 72 inch (1829 mm) long, cut from S119717X bulk conduit, see below

1шт.

32

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 33

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 35

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

S118383X

LARGE HOSE

HOSE - bulk, 1 (25) x 1-1/2 (38) x 192 inch (4877 mm) long

1шт.

S119717X

CONDUIT

- bulk, 1 (25) ID x 192 inch (4877 mm) long

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
