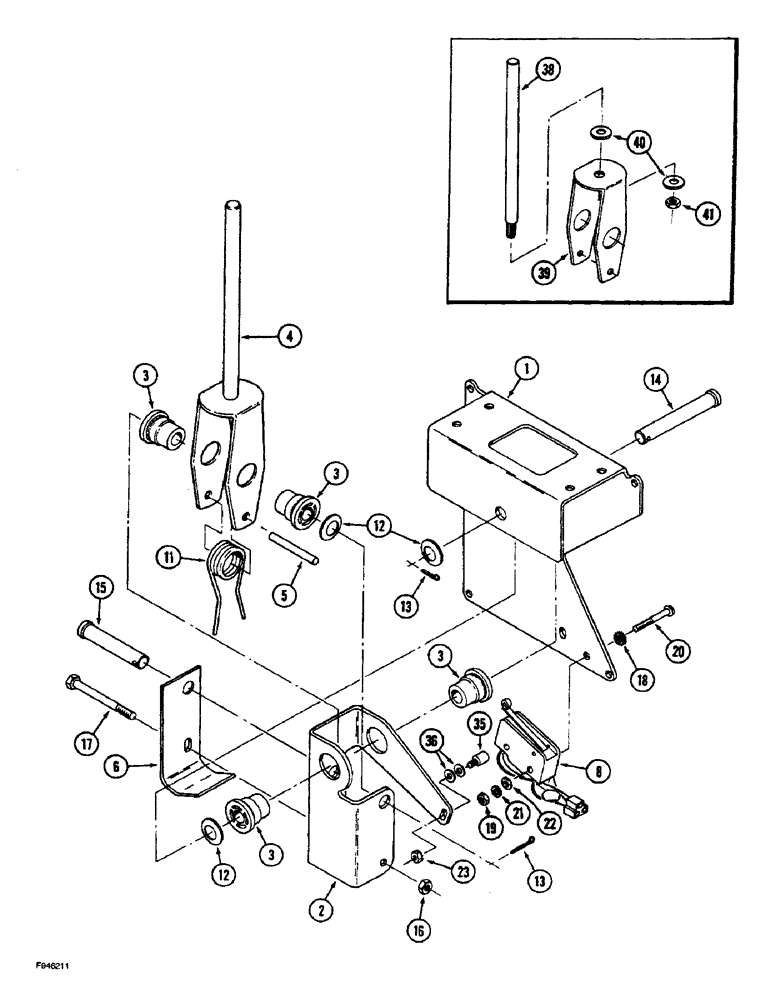

Запчасти Case IH 9280 (6-062) - TRANSMISSION SHIFT CONTROLS MODE CONTROL ASSEMBLY POWER SHIFT TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
60-6060T91
CONTROL
ASSEMBLY - mode, forward or reverse, Includes: Ref. 1 - 22
1шт.
1
60-6057T2
BRACKET
HOUSING - upper, control assembly
1шт.
2
60-5887T1
JOINT
TRUNNION - shift control
1шт.
3
60-6141T1
BUSHING
- flanged, nylon
4шт.
4
60-6756T1
LEVER ASSY.
YOKE - pivot, shift control
1шт.
5
60-5892T1
PIN
spring tension
1шт.
6
60-6056T1
LARGE PLATE
STRIKER - switch actuating
1шт.
8
60-6059T91
IGNITION SWITCH
SWITCH, neutral
1шт.
11
60-6197T1
SPRING
return
1шт.
12
19-6034
SPRING WASHER
- spring, 1/2 x 1 x 1/64 inch
3шт.
13
432-816
COTTER PIN,1/8" x 1"
1/8" x 1"
2шт.
14
19-6158
CLEVIS PIN,1/2" x 2 3/4"
PIN - clevis, 1/2 x 2-3/4 inch
1шт.
15
H382416
CLEVIS PIN
PIN - clevis, 1/2 x 2-1/4 inch
1шт.
16
111626C1
NUT
- hex, self-locking, special, 1/4 inch NC
1шт.
17
413-440
BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5
1шт.
18
493-11014
LOCK WASHER,Ext-Int Tooth, #6
WASHER - internal-external tooth lock, 1/8 inch
2шт.
19
225-14106
NUT,#6-32
2шт.
20
470-10620
SCREW,Pan HD, #6 - 32 x 1-1/4"
- machine, pan head slotted, No. 6 NC x 1-1/4 inch
2шт.
21
492-11006
LOCK WASHER,#6
Washer, Lock, #6
2шт.
22
495-31016
WASHER,#6
2шт.
23
193-1002
NUT,Keps, #8 - 32, w/ Ext Tooth LW
- hex, with external tooth lock washer, No. 8 NC
1шт.
35
20-1316T1
ACTUATOR
mode
1шт.
36
446143
WASHER
- flat, No.8
2шт.
37
193-1002
NUT,Keps, #8 - 32, w/ Ext Tooth LW
- hex, with external tooth lock washer, No. 8 NC
1шт.
38
NSS
NOT SOLD SEPARAT
LEVER - control no longer available, replace with 60-6756T1 control lever, Ref. 4
1шт.
39
NSS
NOT SOLD SEPARAT
YOKE - pivot, shift control, no longer available, replace with 60-6756T1 control lever, Ref. 4
1шт.
40
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16"), If equipped 3/8", SAE
2шт.
41
329-146
JAM NUT,Jam, 3/8"-16, G5
If equipped Jam, 3/8"-16, G5
1шт.
Выбрано товаров: 28
