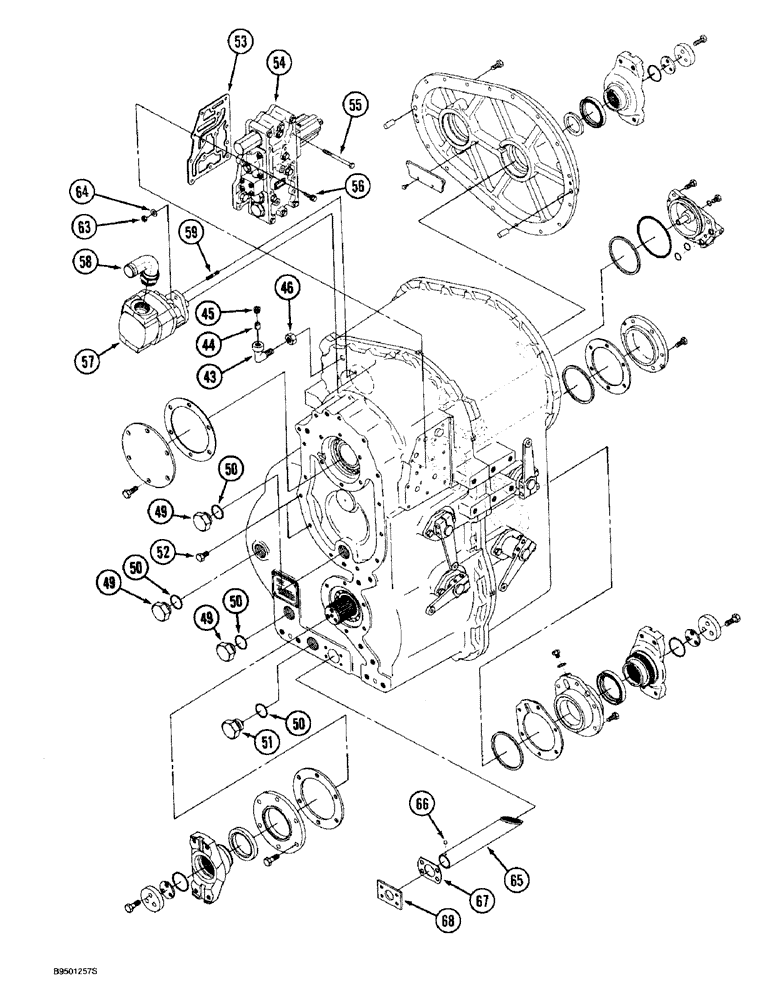

Запчасти Case IH 9280 (6-036) - SYNCHROMESH TRANSMISSION ASSEMBLY PUMP & VALVE MOUNTING, COVERS & YOKES, (CONT) (06) - POWER TRAIN

90-7373T91

TRANSMISSION

ASSEMBLY - SynchroMesh, includes parts listed on Figures 6-34 - 6-58, Includes: Ref. 43 - 68 and 1 - 42 on Fig. 6-34

1шт.

43

33-1455T1

VENTILATION PIPE

ELBOW - 90 degree, breather filter

1шт.

44

33-1454T1

BREATHER

FILTER - breather

1шт.

45

33-1761T1

PLUG

- taper

1шт.

46

SM8911246

NUT

- hex, 16 mm - 1.5

1шт.

49

S1010S00F

PLUG, DRAIN

PLUG - O-ring boss, drain

3шт.

50

S1080S00F

O-RING

- plug

4шт.

Included in Gasket Kit 33-1822T91

1шт.

51

S1090S00F

PLUG

- magnetic

1шт.

52

SM8124220

BOLT

BOLT - hex, 12 mm - 1.25 x 20 mm

2шт.

53

33-1640T1

GASKET

- valve

1шт.

Included in Gasket Kit 33-1822T91

1шт.

54

REF

INSTRUCTION

VALVE ASSEMBLY - control, selector, See Figure 6-60

1шт.

55

SM8120801

BOLT

BOLT - hex, 8 mm - 1.25 x 105 mm

10шт.

56

SM8120830

BOLT

BOLT - hex, 8 mm - 1.25 x 30 mm

3шт.

57

33-1816T1

PUMP, ENGINE OIL

PUMP - oil, used without PTO, component parts not serviced separately

1шт.

57

33-1874T91

PUMP, HYDRAULIC

PUMP - lubrication, component parts not serviced separately, used with PTO

1шт.

58

31-1394

ELBOW

- hose stem, special

1шт.

59

SM8224830

STUD

- mounting

2шт.

63

SM8911208

NUT

- hex, special

2шт.

64

SM8915438

WASHER

- flat, special

2шт.

65

33-1561T1

TUBE

- suction

1шт.

66

S14701960

BALL,3.968mm OD

- steel, tube retaining

1шт.

67

S1620S01F

GASKET

- suction tube

1шт.

Included in Gasket Kit 33-1822T91

1шт.

68

S1700S00F

LARGE PLATE

PLATE - suction tube retainer

1шт.

33-1822T91

GASKET KIT

KIT - gasket, complete transmission, includes all items as indicated on Figures 6-34 - 6-58

1шт.
