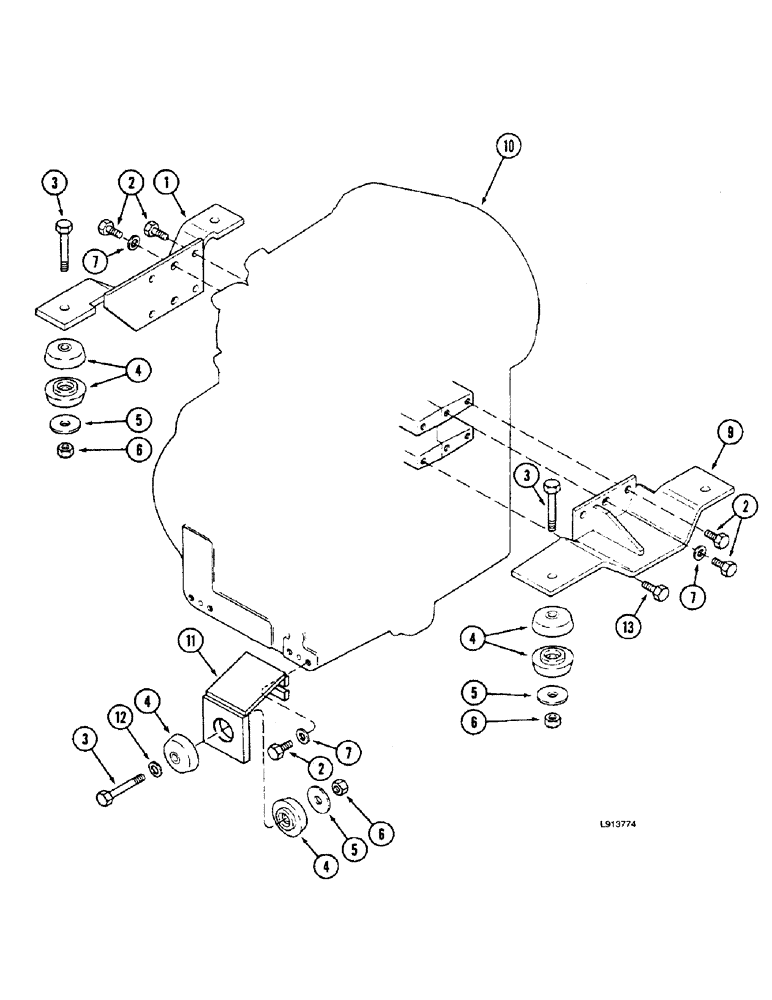

Запчасти Case IH 9270 (6-005A) - TRANSMISSION MOUNTING SYNCHROSHIFT TRACTOR (06) - POWER TRAIN

1

70-5981T2

SUPPORT

MOUNT - transmission, left-hand

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

14шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

4

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

12шт.

5

19-5518

WASHER

- flat, 25/32 x 4 x 3/16 inch

6шт.

6

19-85

LOCK NUT

- hex, self-locking, 3/4 inch NC

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

7шт.

9

70-5983T4

SUPPORT

MOUNT - transmission, right-hand

1шт.

10

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - SynchroShift, parts list Figures 6-59C - 6-61E

1шт.

11

90-7489T3

SUPPORT

MOUNT - transmission, lower

2шт.

12

495-11081

WASHER,3/4", SAE

2шт.

13

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8

2шт.
