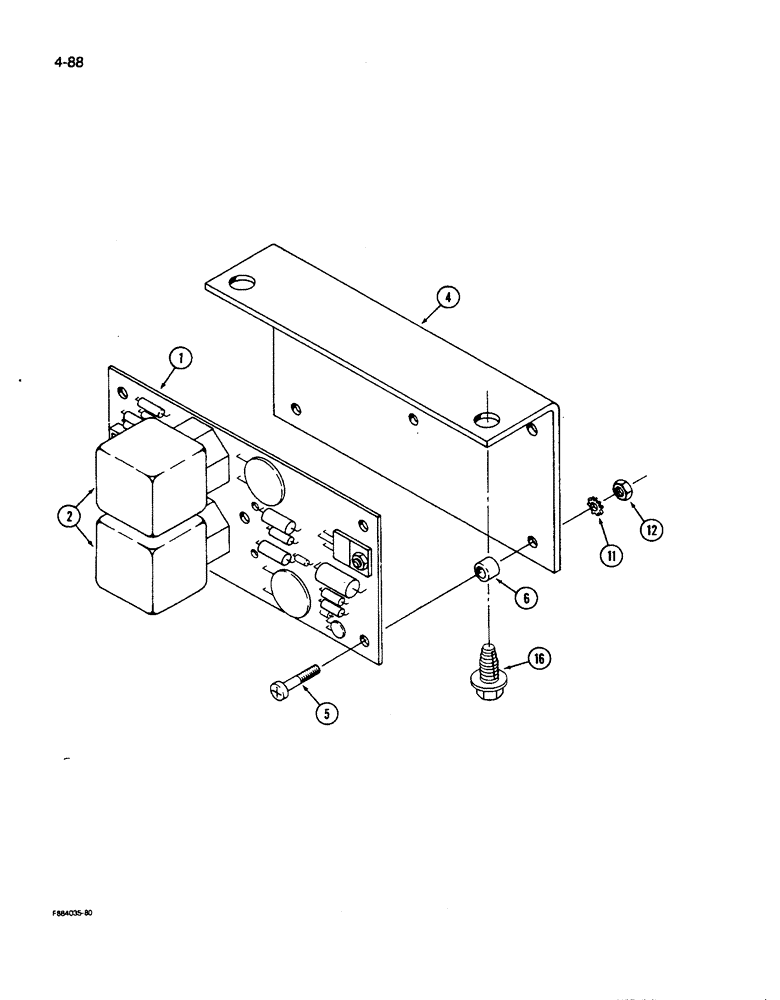

Запчасти Case IH 9270 (4-088) - TIME BASE FLASHER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

20-2123T3

BOARD, PRINTED CIRCU

CIRCUIT BOARD - time base flasher (Replaces 20-2123T2), Includes: Ref. 2

1шт.

1

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-2123T3

1шт.

1

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

*

9280 Steiger Power Shift & 9280 Steiger Synchroshift, Both S/N JCB0027096 & Aft., N.A. Only

1шт.

2

1983394C1

RELAY

- electrical (Replaces 1-7877)

1шт.

4

25-1000155

SUPPORT

BRACKET - mounting, circuit board

1шт.

5

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

- pan head machine, No. 6 NC x 5/8 inch

5шт.

6

25-1000174

SPACER

- circuit board

5шт.

11

19-601

LOCK WASHER,Ext, #6

WASHER - external lock, No. 6 inch

5шт.

12

19-1013

NUT

- hex, No. 6 NC

5шт.

16

172427

SHIELD

- hex head tap, 1/4 NC x 1/2 inch

2шт.
