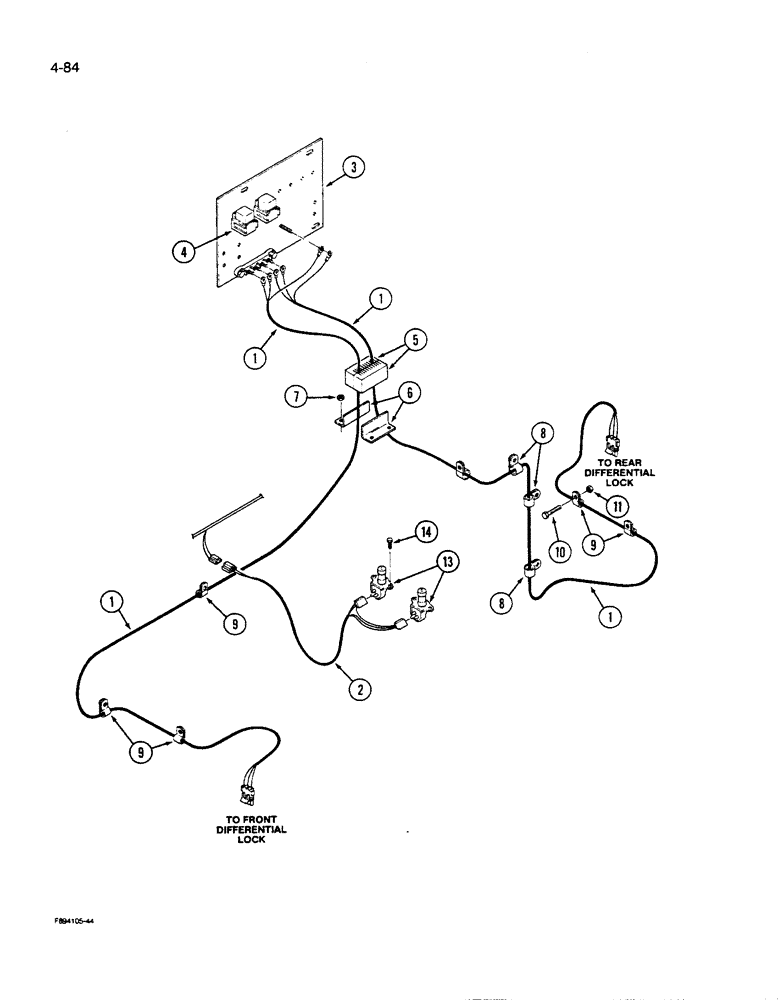

Запчасти Case IH 9270 (4-084) - CONTROL TRACTION DIFFERENTIAL HARNESSES (04) - ELECTRICAL SYSTEMS

1

20-2484T1

HARNESS

ASSEMBLY - differential, front and rear

2шт.

2

60-6341T1

HARNESS

ASSEMBLY - switch, differential lock

1шт.

3

REF

INSTRUCTION

PLATE - relay mounting (See Figure 4-18)

1шт.

4

REF

INSTRUCTION

HARNESS - relay, differential (See Figure 4-18)

2шт.

5

60-6066T1

FOAM

- sealing

2шт.

6

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

8

T50104

CLAMP

- retaining, harness

3шт.

9

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- retaining

5шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

13

20-1988T1

IGNITION SWITCH

SWITCH - on/off, differential

2шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.
