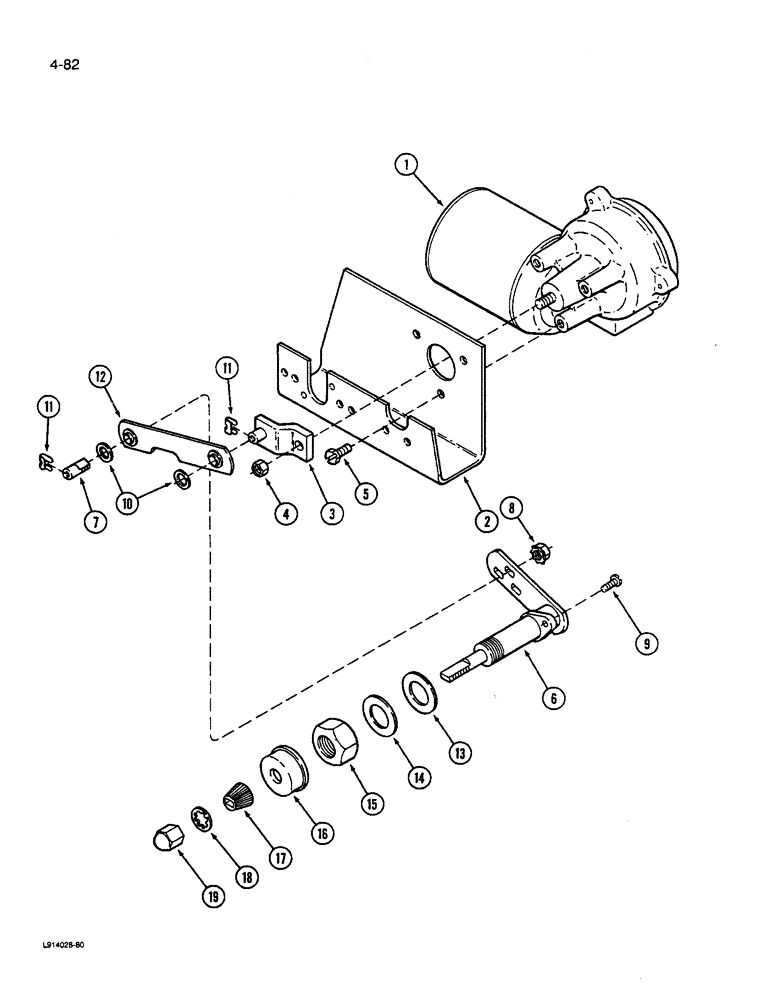

Запчасти Case IH 9270 (4-082) - WIPER DRIVE ASSEMBLY REAR WINDOW P.I.N. JCB0028400 & AFTER (04) - ELECTRICAL SYSTEMS

1

60-6586T1

WIPER MOTOR

MOTOR - wiper drive

1шт.

2

60-6633T1

SUPPORT

BRACKET - wiper drive

1шт.

3

60-6626T1

LEVER

ARM - wiper drive

1шт.

4

60-6632T1

NUT

- drive arm retaining

1шт.

5

60-6631T1

SCREW

BOLT - slotted hex special, with lock washer

3шт.

6

60-6581T91

DRIVE ASSY.

SHAFT ASSEMBLY - wiper drive pivot, Includes: Ref. 7 - 19

1шт.

7

NSS

NOT SOLD SEPARAT

PIN

1шт.

8

NSS

NOT SOLD SEPARAT

NUT

1шт.

9

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

2шт.

10

A22431

WASHER

- flat

1шт.

11

D71414

CLIP

RETAINER - spring clip

2шт.

12

D71427

LINK,85.85mm L

- connecting

1шт.

13

N6749

WASHER

- fiber

1шт.

14

N6750

WASHER

- flat

1шт.

15

60-3497T1

NUT

- hex, jam

1шт.

16

N6752

CAP

- shaft, rubber

1шт.

17

N6753

BLOCK DRIVER

DRIVER - knurled

1шт.

18

60-6634T1

LOCK WASHER

WASHER - internal tooth lock

1шт.

19

60-6635T1

NUT

- retaining cap

1шт.
