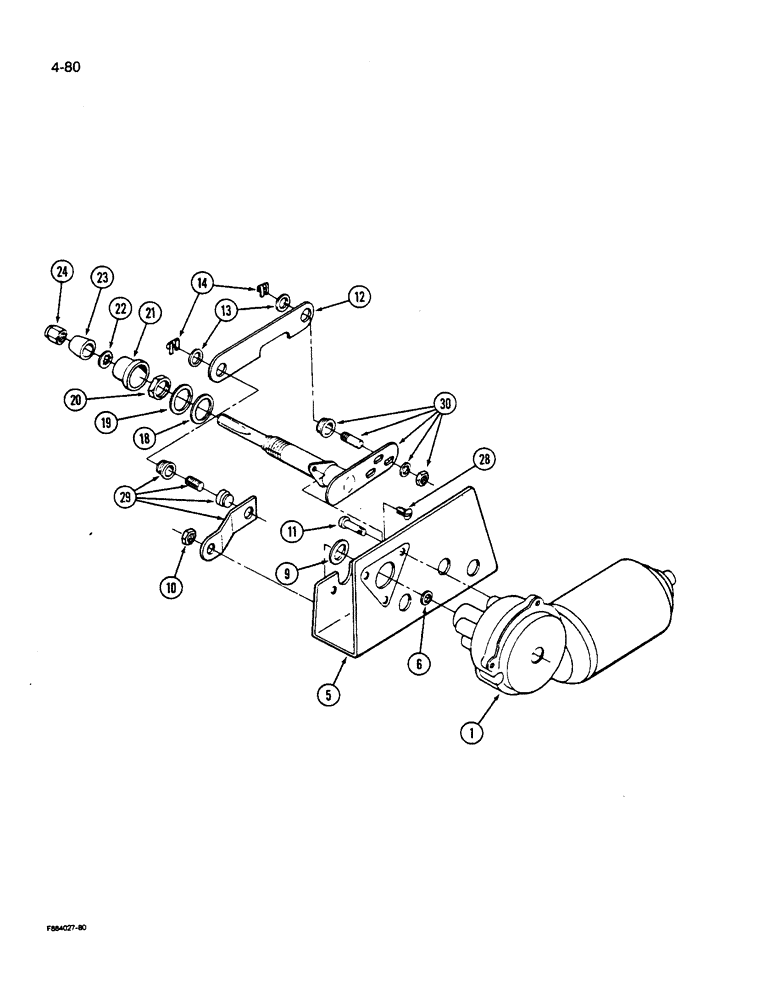

Запчасти Case IH 9270 (4-080) - WIPER DRIVE ASSEMBLY REAR WINDOW PRIOR TO P.I.N. JCB0028400 (04) - ELECTRICAL SYSTEMS

1

F96765

WIPER MOTOR

MOTOR ASSEMBLY - wiper, rear

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

1-9415

SPACER

- motor mounting

3шт.

9

D71411

WASHER

- wave

1шт.

10

F44452

LOCK NUT

- hex keps

1шт.

11

D72849

SCREW

- round head machine

1шт.

12

D71427

LINK,85.85mm L

- connecting

1шт.

13

A22431

WASHER

SPACER - pivot shaft

2шт.

14

D71414

CLIP

RETAINER - spring clip

1шт.

18

D71417

SPECIAL WASHER

WASHER - flat, steel

1шт.

19

D71418

WASHER

- flat, fiber

1шт.

20

D71419

NUT

- hex jam

1шт.

21

1-9419

CAP

- seal, shaft

1шт.

22

1-9422

WASHER

- lock

1шт.

23

D71421

TOOL

DRIVER - knurled

1шт.

24

D71422

NUT

- hex cap

1шт.

28

1-2686

SCREW,no

- pan head machine (Order 182-528 screw and 492-11010 washer)

2шт.

29

F64210

LEVER

- drive

1шт.

30

F96719

SHAFT

DRIVE ASSEMBLY - shaft and pivot arm

1шт.
