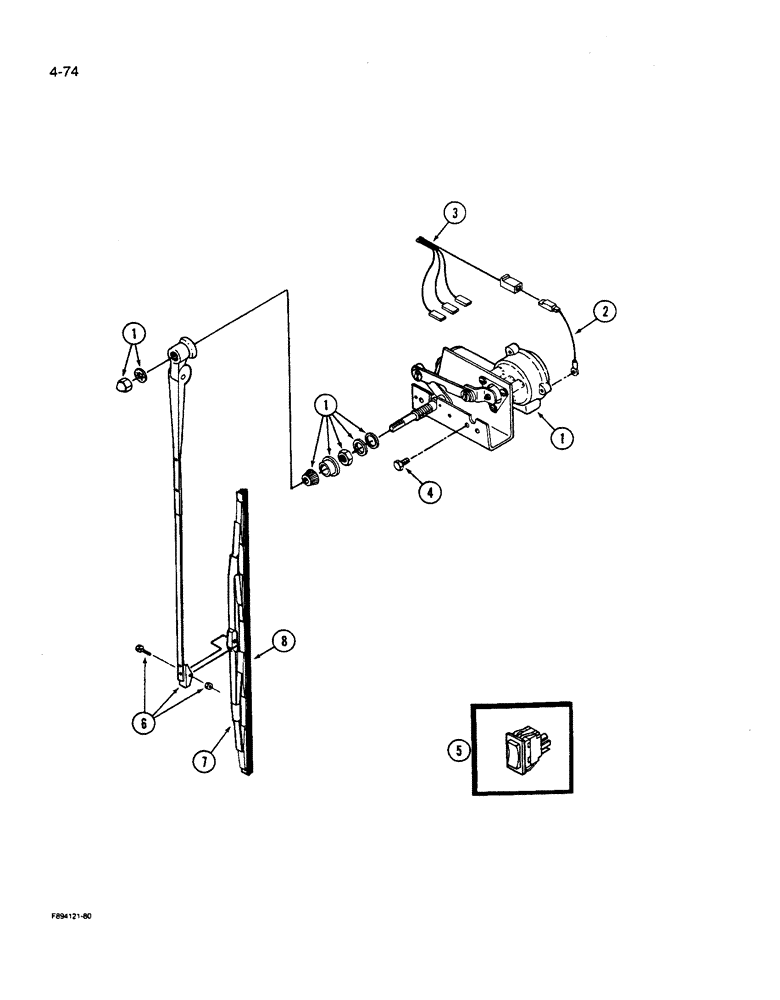

Запчасти Case IH 9270 (4-074) - REAR WIPER IF EQUIPPED (04) - ELECTRICAL SYSTEMS

35-1926T91

WIPER KIT - side and rear window with washer (Machinery item), Includes: Ref. 1 - 8, Start Serial: JCB0028400

1шт.

Wiper Kit also includes the parts shown on Figures 4-70 - 4-74

1шт.

35-1849T91

WIPER KIT - side and rear window with washer (Machinery item), Serial Range: -JCB0028400

1шт.

Wiper Kit also includes the parts shown on Figures 4-70 - 4-74

1шт.

1

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, rear (See Figure 4-58)

1шт.

2

60-6627T1

ELECTRICAL WIRE

WIRE - ground, Start Serial: JCB0028400

1шт.

2

20-1452T1

ELECTRICAL WIRE

WIRE - ground (Shown), Serial Range: -JCB0028400

1шт.

Per ECN F9407-38 wiper motor supplier has removed grounding tabs. Ground Cable is changed to 60-7091T1 cable for ring terminal which is attached to existing screw on motor.

1шт.

3

60-6523T1

HARNESS

- rear wiper

1шт.

4

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

2шт.

5

1987431C1

SWITCH

- rocker, rear wiper (In cab)

1шт.

6

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

1шт.

7

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: Ref. 8

1шт.

8

2-4194T1

WIPER BLADE

BLADE - wiper, rubber (18 inch)

1шт.
