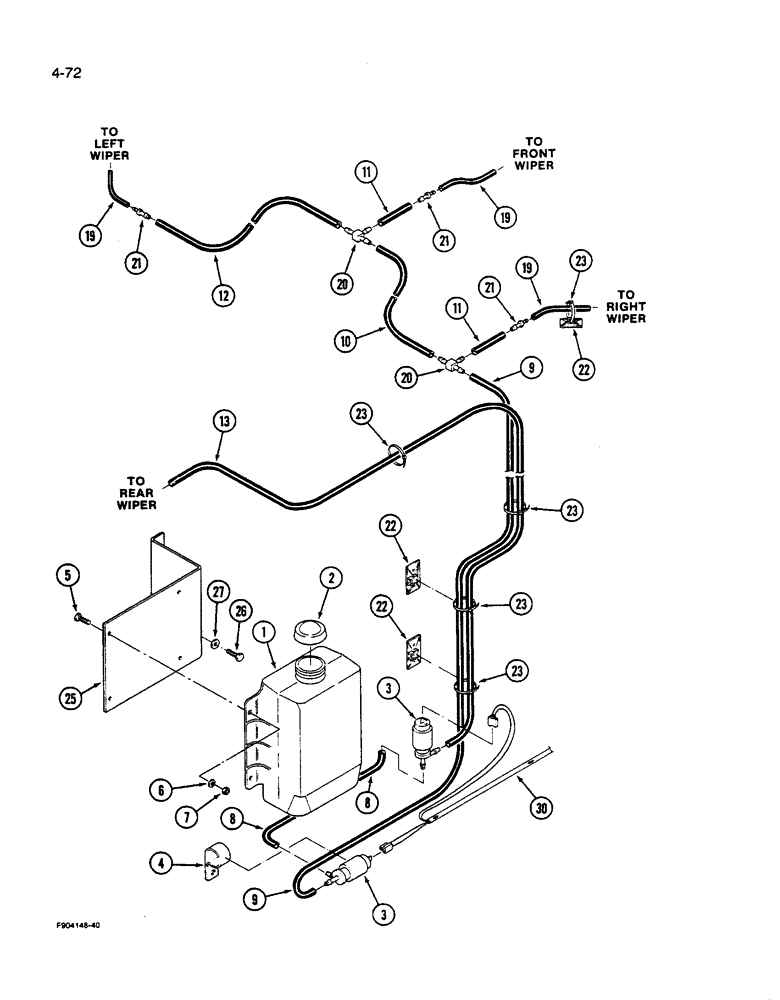

Запчасти Case IH 9270 (4-072) - WINDOW WASHERS IF EQUIPPED (04) - ELECTRICAL SYSTEMS

35-1926T91

WIPER KIT - side and rear window with washer (Machinery item), Includes: Ref. 1 - 27, Start Serial: JCB0028400

1шт.

Wiper Kit also includes the parts shown on Figures 4-70 - 4-74

1шт.

35-1849T91

WIPER KIT - side and rear window with washer (Machinery item), Includes: Ref. 1 - 27, Serial Range: -JCB0028400

1шт.

Wiper Kit also includes the parts shown on Figures 4-70 - 4-74

1шт.

1

60-6524T1

RESERVOIR

TANK - washer fluid

1шт.

2

60-4241T1

FILLER CAP

CAP - tank

1шт.

3

60-3183T1

PUMP, WATER

PUMP - washer fluid

2шт.

4

31-2361

MOUNTING CLIP

CLAMP - mounting, pump

1шт.

5

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

4шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

5шт.

8

NSS

NOT SOLD SEPARAT

HOSE - washer, 10 inch (Order 4-1056T1 and, Serial Range: cut-length)

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - washer, 130 inch (Order 4-1056T1 and, Serial Range: cut-length)

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - washer, 24 inch, (Order 4-1056T1 and, Serial Range: cut-length)

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - washer, 2 inch (Order 4-1056T1 and, Serial Range: cut-length)

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - washer, 12 inch (Order 4-1056T1 and, Serial Range: cut-length)

1шт.

13

31-2916

HOSE,4.78 mm ID x 4470.40 mm

- Washer (Order 4-1056T1 and cut to length) 4.78 mm ID x 4470.40 mm

3шт.

19

NSS

NOT SOLD SEPARAT

HOSE - washer, 10 inch (Order 31-2607T1 and, Serial Range: cut-length)

4шт.

20

31-2363

TEE

- nylon, 3/16 inch

2шт.

21

31-2364

FITTING

CONNECTOR - nylon, 3/16 x 7/64 inch

3шт.

22

22-823

MOUNT

MOUNT - strap, adhesive backed

3шт.

23

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

25

60-6636T1

SUPPORT

BRACKET - mounting, washer tank (Not included with 35-1926T91Kit)

1шт.

26

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, Grade 8

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

30

REF

INSTRUCTION

HARNESS - front frame (See Figure 4-36)

1шт.
