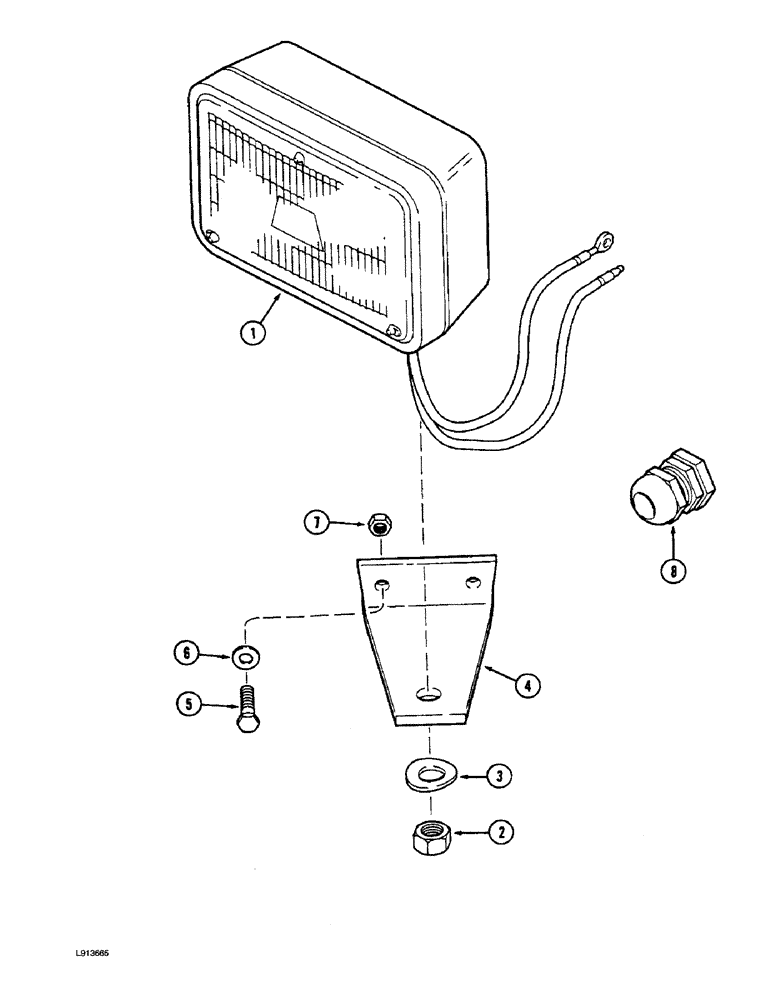

Запчасти Case IH 9270 (4-064) - FLOOD LAMP KIT (04) - ELECTRICAL SYSTEMS

35-1751T91

LAMP

KIT - flood, field (Order components), Includes: Ref. 1 - 8

1шт.

1

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood (See Figure 4-60)

4шт.

2

19-653

LOCK NUT

- hex lock, 1/2 inch NC

4шт.

3

22-367

SPRING WASHER

- conical spring lock, 1/2 inch

4шт.

4

60-4336T1

SUPPORT

BRACKET - mounting (flood, Serial Range: lamp-cab)

2шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

7

111626C1

NUT

- hex lock, 1/4 inch NC

4шт.

8

60-6590T1

CONNECTOR, ELEC

CONNECTOR - wire (cab mounted lamp)

2шт.
