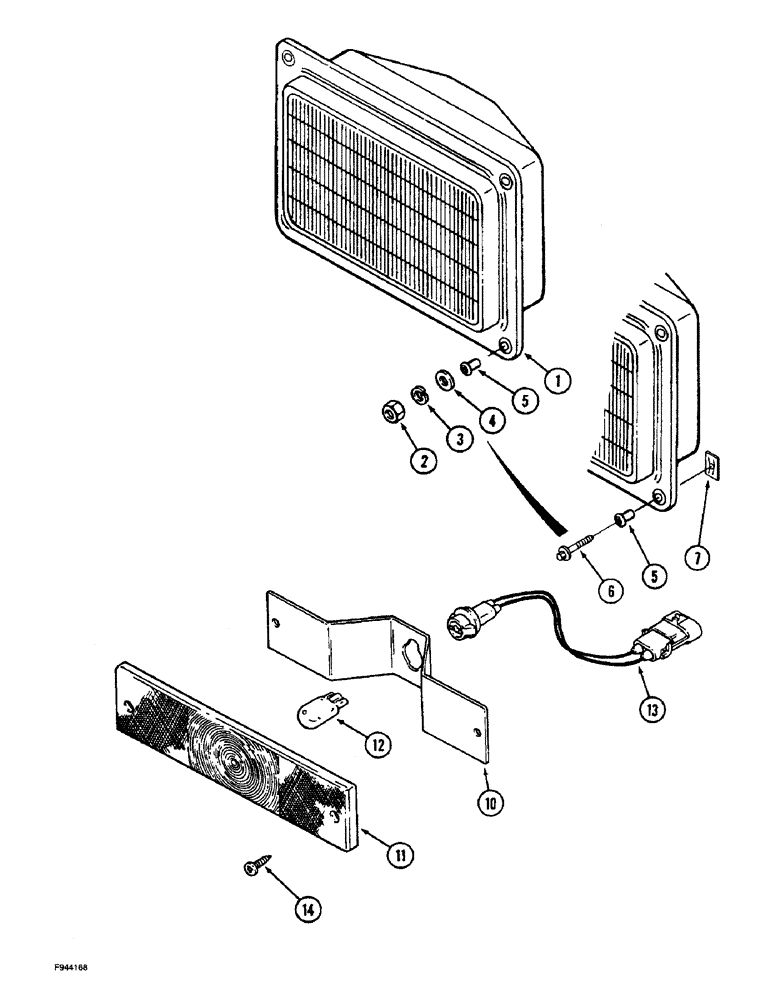

Запчасти Case IH 9270 (4-062) - LAMPS, P.I.N. JCB0028400 & AFTER, HEAD LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

60-6730T91

HEADLIGHT

LAMP - head

2шт.

S/N JCB0028400 & After

1шт.

2

225-14110

NUT,#10-24

8шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

4

495-31022

WASHER,#10

8шт.

5

60-6843T1

BUSHING

- brass, headlamp mounting

8шт.

6

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 - 16 x 1 inch, use with bracket 70-6727T1, when equipped, see Figure 9-31A

8шт.

7

60-7095T1

STEEL SHEET NUT

NUT - clip, use with bracket 70-6727T1, when equipped, see Figure 9-31A

8шт.

A186202

LAMP

ASSEMBLY - tail, Includes: Ref. 10 - 13

2шт.

S/N JCB0028400 & After

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - tail lamp assembly

1шт.

11

NSS

NOT SOLD SEPARAT

LENS - tail lamp assembly

1шт.

12

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, tail assembly

1шт.

13

A186201

WIRE HARNESS

HARNESS - includes socket, tail lamp assembly

1шт.

14

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAPPING, pan Phillips, No. 8-18 x 1", Tail lamp assy

4шт.
