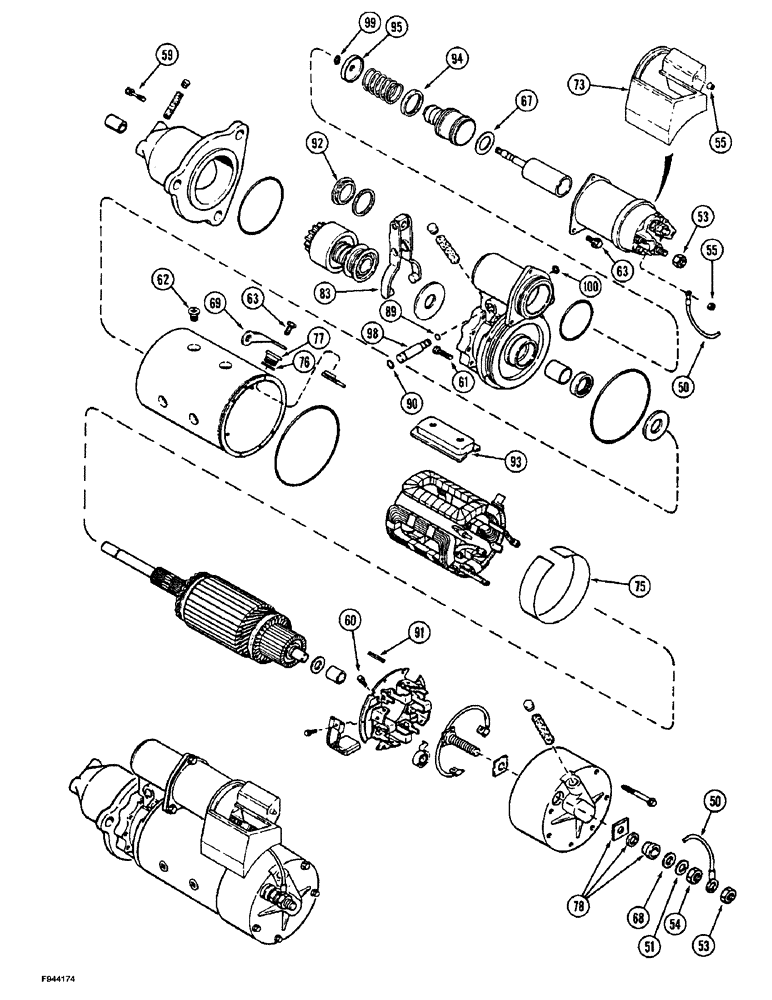

Запчасти Case IH 9270 (4-053C) - STARTER ASSEMBLY, DELCO REMY CONT. (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
107717A1
STARTING MOTOR
STARTER ASSEMBLY - Delco Remy, 12 volt, replacement, must also order L128826 terminal guard, Ref. 73 and 1546549C1 nut, Ref. 55, Includes: Ref. 50 - 100 and 1 - 44 on Fig.4-53A
1шт.
140855A3R
REMAN-STARTER,12V
Remanufactured Starter 12 volt, 42MT
1шт.
140855A3C
CORE-STARTER,12V
Return Part Number, Starter 12 volt, 42MT
1шт.
50
A47895
ELECTRICAL WIRE
WIRE WIRE - field coil, Serial Range: terminal-solenoid
1шт.
51
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
53
A47890
NUT
NUT - flange type, special, 1/2 inch NC
2шт.
54
425-148
JAM NUT,Jam, 1/2"-13, G5
NUT - hex, jam, 1/2 inch NC
1шт.
55
1546549C1
NUT
NUT - hex, special, No. 10 - 32 NF
2шт.
59
1546551C1
BOLT,Torx Hd, 5/16" - 18 x 0.86"
SCREW - special, drive housing
6шт.
60
A47894
SCREW,#8 - 32 x 5/16"
SCREW - brush retainer
2шт.
61
A187741
BOLT,Torx Drive, 1/4" - 28 x 1", T Pt
SCREW - housing retaining
5шт.
62
188-100
SCREW,Cross Flat Hd, 3/8"-24 x 5/8"
SCREW - machine, flat Phillips, 3/8 NF x 21/32 inch
8шт.
63
10497770
BOLT,Torx Hd, 1/4" - 20
BOLT - torx head, special, 1/4 NC x 35/64 inch
4шт.
67
A41922
WASHER
WASHER - plunger seat
1шт.
68
95-81101
WASHER,0.52" ID x 0.88" OD x 0.07" Thk
WASHER - flat, 33/64 x 7/8 x 1/16 inch
1шт.
69
A49779
TERMINAL CONNECTOR
CONNECTOR - field, Serial Range: terminal-solenoid
1шт.
73
L128826
SHIELD
GUARD - starter terminal
1шт.
75
A49767
RUBBER INSULATOR
INSULATOR - field coil terminal
1шт.
76
A49501
RUBBER INSULATOR
INSULATOR - inner, field terminal
1шт.
77
A49500
RUBBER INSULATOR
INSULATOR - outer, field terminal
1шт.
78
A49768
KIT
KIT - insulator, terminal, Includes: Ref. 83 - 90
1шт.
83
NSS
NOT SOLD SEPARAT
LEVER - shift
1шт.
Included in shift lever kit A187515.
1шт.
89
NSS
NOT SOLD SEPARAT
O-RING - seal, shift lever rod
1шт.
Included in shift lever kit A187515.
1шт.
90
NSS
NOT SOLD SEPARAT
O-RING - seal, shift lever rod
1шт.
Included in shift lever kit A187515.
1шт.
91
A49753
PIN, SPLIT (COTTER)
PIN, COTTER PIN - roll, end cover locating, spring
1шт.
92
R21587
PLUG
PLUG, inspection, lever housing
1шт.
93
R15115
SHOE
SHOE - pole, starter
4шт.
94
A43380
BACK-UP RING
SEAT - plunger spring
1шт.
95
A43419
SEAT
SEAT - spring
1шт.
98
NSS
NOT SOLD SEPARAT
SHAFT - shift lever
1шт.
Included in shift lever kit A187515.
1шт.
99
100-1137
SNAP RING,#37, Ext
Ring, Snap, , plunger #37, Ext
1шт.
100
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
Included in shift lever kit A187515.
1шт.
