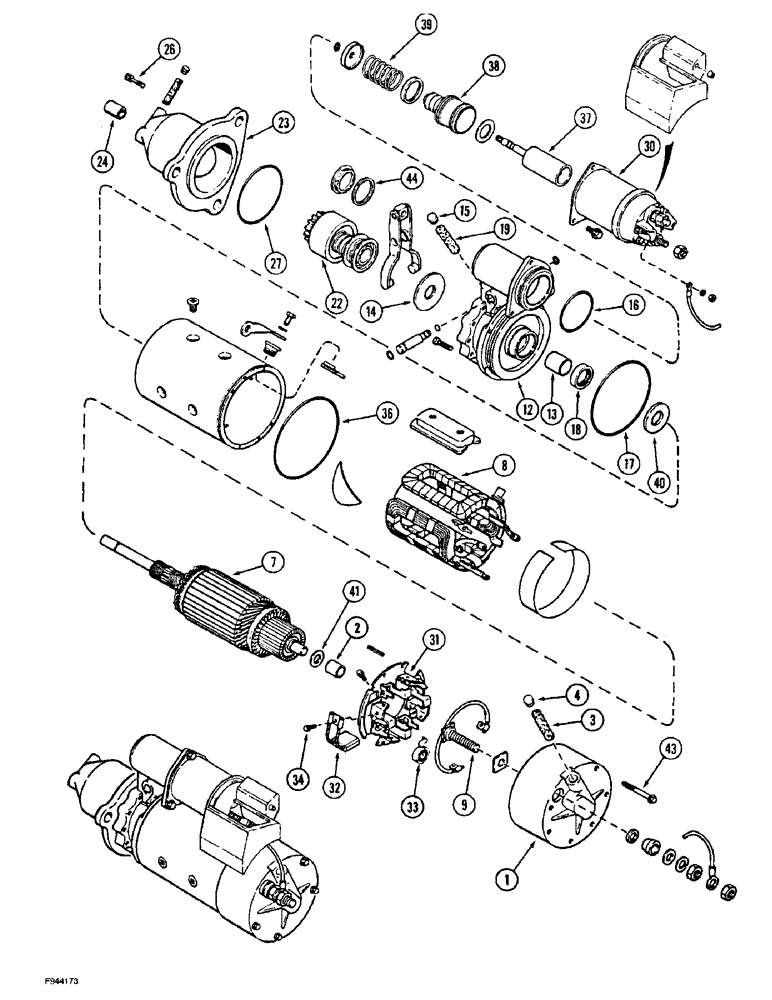

Запчасти Case IH 9270 (4-053A) - STARTER ASSEMBLY, DELCO REMY (04) - ELECTRICAL SYSTEMS

107717A1

STARTING MOTOR

STARTER ASSEMBLY - Delco Remy, 12 volt, replacement, must also order L128826 terminal guard, Ref. 73 and 1546549C1 nut, Ref. 55 Figures 4-53C, Includes: Ref. 1 - 44 and 50 - 100 on Fig. 4-53C

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

1

A187561

COVER

COVER ASSEMBLY - commutator end, Includes: Ref. 2 - 4

1шт.

2

A40868

BUSHING

BUSHING - armature, commutator end (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

3

A49769

WICK

FELT - bearing oil (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

4

A49573

PLUG

CUP - oil reservoir (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

7

142943A1

ROTOR

ARMATURE - starter

1шт.

8

142944A1

COIL

COIL - field

1шт.

9

A49764

TERMINAL CONNECTOR

WIRE - terminal, commutator end

1шт.

12

A49772

HOUSING

HOUSING - shift lever, Includes: Ref. 13 - 19

1шт.

13

A49765

BUSHING

BUSHING - armature, lever housing (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

14

A185121

WASHER

WASHER - shift lever housing, brake (Replaces NSS)

1шт.

15

A19573

PLUG - oil reservoir (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

16

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING - seal, switch (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

17

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - seal, lever housing (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

18

R21582

OIL SEAL

SEAL - oil lever housing (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

19

A49567

WICK

FELT - bearing oil (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

22

20-1343T1

DRIVE ASSY.

CLUTCH - drive

1шт.

23

A49773

HOUSING

HOUSING - drive end, Includes: Ref. 24 - 27

1шт.

24

A47257

BUSHING

BUSHING - armature, drive housing (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

25

A47888

WICK

FELT - bearing oil (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

26

A47989

SPRING

PLUG - oil reservoir (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

27

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - seal, drive housing (Replaces NSS)

1шт.

Included in bushing kit A187514.

1шт.

30

141338A1

SOLENOID

SOLENOID - magnetic, 12 volt (Replaces 112848A1)

1шт.

31

142949A1

BRUSH HOLDER

PLATE - brush, Includes: Ref. 32 - 36

1шт.

142961A1

BRUSH SET

KIT - brush, starter, repair (Replaces 1429161A1), Includes: Ref. 32 - 36

1шт.

32

142948A1

BRUSH, COMMUTATOR

BRUSH BRUSH - starter (Replaces NSS)

4шт.

33

A49575

SPRING

SPRING - brush (Replaces NSS)

4шт.

34

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush lead (Replaces NSS)

4шт.

36

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING, , Seal, commutator end (Replaces NSS) -158, 70 Duro, 4.737" ID x .103" Thk

1шт.

37

A49757

PLUNGER

PLUNGER - solenoid

1шт.

38

A49589

BOOT

BOOT - plunger, cover

1шт.

39

A41242

SPRING

SPRING - plunger return

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/16 x 1-3/4 x 3/16 inch

1шт.

Included in bushing kit A187514.

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

Included in bushing kit A187514.

1шт.

42

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF

1шт.

Included in bushing kit A187514.

1шт.

43

NSS

NOT SOLD SEPARAT

SCREW - hex Keps

6шт.

Included in bushing kit A187514.

1шт.

44

NSS

NOT SOLD SEPARAT

GASKET - inspection plug

1шт.

Included in bushing kit A187514.

1шт.
