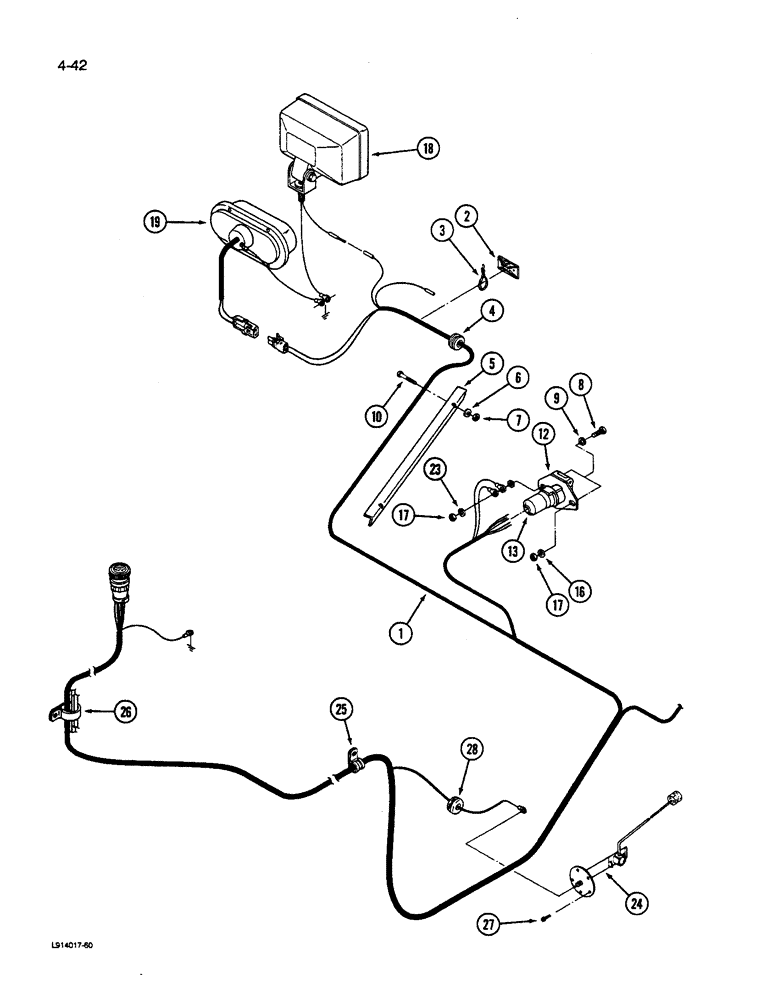

Запчасти Case IH 9270 (4-042) - REAR FRAME HARNESS P.I.N. JCB0028400 & AFTER (04) - ELECTRICAL SYSTEMS

1

60-6789T1

HARNESS

ASSEMBLY - rear frame

1шт.

2

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

4

31-2242

GROMMET

- protective

2шт.

5

51-366

PROTECTOR

GUARD - wire

2шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

8

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

10

426-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 8

- hex, 1/4 NC x 1-5/8 inch, Grade 8

4шт.

12

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - socket

1шт.

13

A169283

BOOT

- protective

1шт.

16

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

REF

INSTRUCTION

LAMP ASSEMBLY - field (See Figures 4-60 and 4-64)

2шт.

19

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-62)

2шт.

23

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

24

REF

INSTRUCTION

SENSOR - fuel (See Figure 3-4)

1шт.

25

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

26

31-1349

MOUNTING CLIP

CLAMP - retaining

1шт.

27

363-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- hex washer head machine, No. 10-24 x 1/2 inch

5шт.

28

22-766

GROMMET

- hole

1шт.
