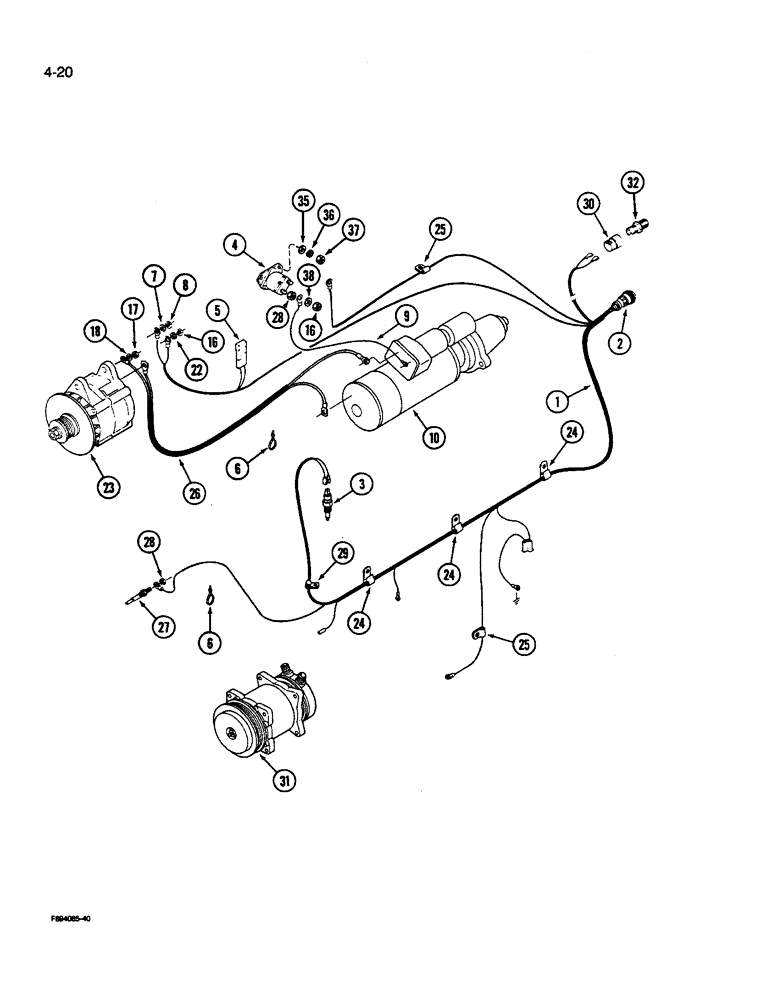

Запчасти Case IH 9270 (4-020) - ENGINE HARNESS PRIOR TO P.I.N. JCB0028400 (04) - ELECTRICAL SYSTEMS

1

60-6455T1

HARNESS

ASSEMBLY - engine, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

The receptical this plugs into is 60-6639T1

1шт.

3

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender (Replaces 20-1676T1)

1шт.

4

A39079

SOLENOID

SWITCH - magnetic (Order 121613C1)

1шт.

5

60-6251T1

DIODE

- electrical

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

7

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

8

225-14110

NUT,#10-24

1шт.

9

20-2463T2

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: starter-switch

1шт.

10

REF

INSTRUCTION

STARTER - engine (See Figure 4-50 and 4-52)

1шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

18

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external lock, 1/4 inch

1шт.

22

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

23

REF

INSTRUCTION

ALTERNATOR - engine (See Figures 4-54 - 4-58)

1шт.

24

22-628

CABLE CLIP

CLIP - harness, retaining

3шт.

25

31-1862

CLAMP

- retaining

2шт.

26

60-6454T1

HARNESS

- alternator

1шт.

27

A145513

SENSOR

- level, coolant

1шт.

28

19-481

SERRATED NUT

- hex keps, No. 10 NF

2шт.

29

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

1шт.

30

A172784

RESTRICTION SWITCH

SWITCH, air restriction

1шт.

31

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9-104)

1шт.

32

D36264

FITTING

- filter

1шт.

35

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
