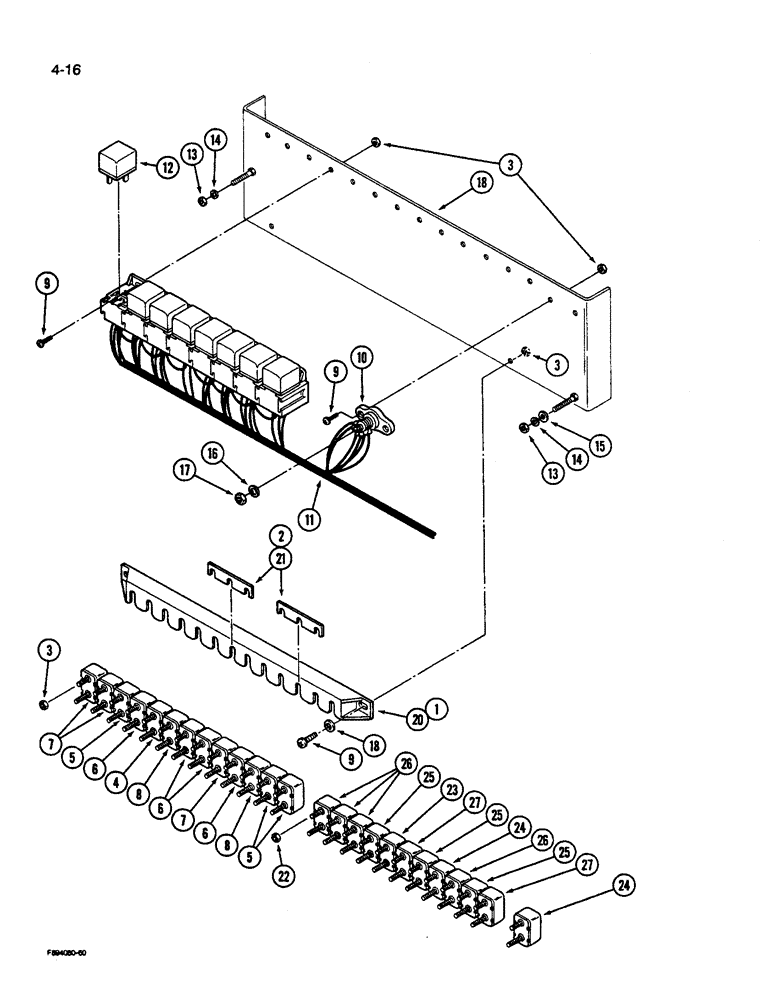

Запчасти Case IH 9270 (4-016) - OVERHEAD CIRCUIT BREAKERS & SOLENOIDS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
60-6519T92
CIRCUIT BREAKER
BREAKER ASSEMBLY - circuit (Cab), Includes: Ref. 1 - 9, Serial Range: -JCB0028400
1шт.
20-2485T91
BREAKER
ASSEMBLY - circuit (ROPS), Includes: Ref. 1 - 9
1шт.
1
22-674
BRACKET
- circuit breaker
1шт.
2
22-676
BREAKER
CONNECTOR - circuit breaker
2шт.
3
19-481
SERRATED NUT
- keps, No. 10 NF
1шт.
4
22-809
BREAKER
- circuit, 5 ampere
1шт.
6
22-671
BREAKER
- circuit, 15 ampere (Cab)
4шт.
6
22-671
BREAKER
- circuit, 15 ampere (ROPS)
3шт.
7
245765C1
CIRCUIT-BREAKER,30A
BREAKER - circuit, 30 ampere (Cab)
3шт.
7
245765C1
CIRCUIT-BREAKER,30A
BREAKER - circuit, 30 ampere (ROPS)
2шт.
8
22-672
BREAKER
- circuit, 20 ampere
2шт.
9
459-5108
SCREW,Slotted Pan Hd, #10-32 x 1/2", G5
- pan head machine, No. 10 NF x 1/2 inch
1шт.
10
20-1451T1
BLOCK
- junction
1шт.
11
REF
INSTRUCTION
HARNESS - main, cab (See Figures 4-2 - 4-6)
1шт.
11
REF
INSTRUCTION
HARNESS - main, ROPS (See Figures 4-8 and 10)
1шт.
12
1983394C1
RELAY
- electrical (Replaces 1-7877)
8шт.
13
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
3шт.
14
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
15
495-21031
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch
2шт.
16
19-5577
LOCK WASHER
- brass lock, 3/8 inch
1шт.
17
115772
NUT
- hex brass, 3/8 inch NC
1шт.
18
60-4039T1
SUPPORT
BRACKET - mounting, breaker
1шт.
60-6754T91
CIRCUIT BREAKER
BREAKER ASSEMBLY - cab circuit, Includes: Ref. 20 - 27, Start Serial: JCB0028400
1шт.
20
22-674
BRACKET
- circuit breaker
1шт.
21
22-676
BREAKER
CONNECTOR - circuit breaker
2шт.
22
19-481
SERRATED NUT
- keps hex, No.10 NF
13шт.
23
22-809
BREAKER
CIRCUIT BREAKER - 5 ampere
1шт.
25
22-671
BREAKER
CIRCUIT BREAKER - 15 ampere
3шт.
26
245765C1
CIRCUIT-BREAKER,30A
CIRCUIT BREAKER - 30 ampere
4шт.
27
22-672
BREAKER
CIRCUIT BREAKER - 20 ampere
2шт.
Выбрано товаров: 33
