(4-014) - OVERHEAD ROPS HARNESS

Запчасти Case IH 9270 (4-014) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS

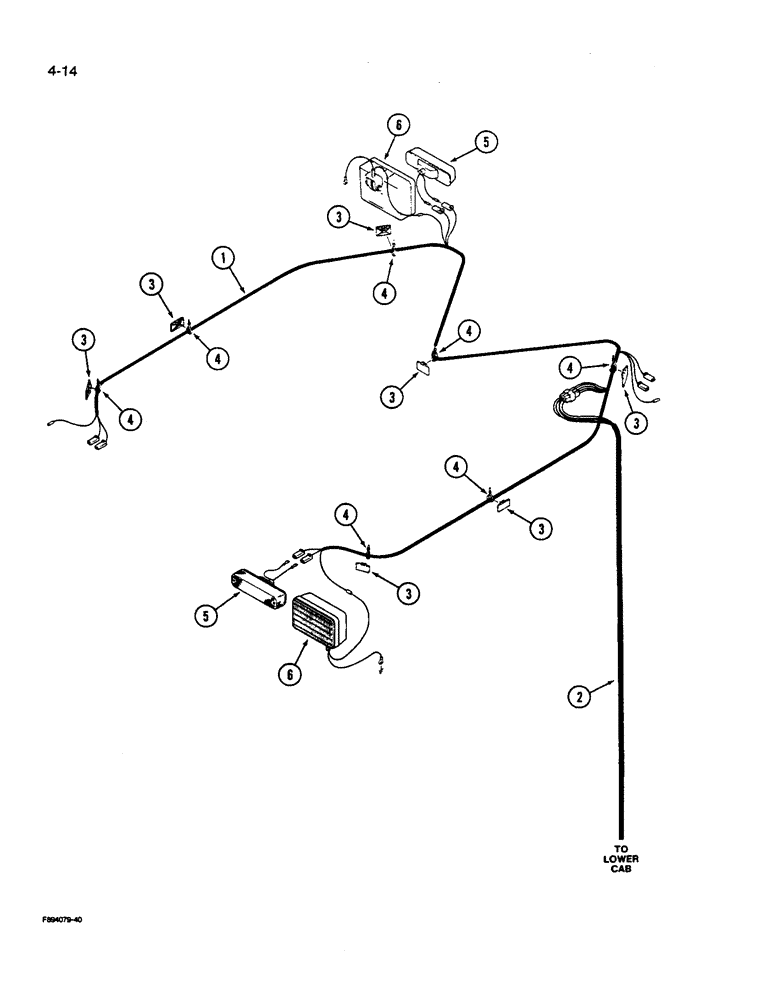

Схема запчастей Case IH 9270 - (4-014) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS
4
4
3
3
5
3
6
3
1
2
6
4
4
5
4
4
4
3
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

ASSEMBLY - overhead

1шт.

2

REF

INSTRUCTION

HARNESS - main ROPS (See Figures 4-8 and 4-10)

1шт.

3

22-823

MOUNT

MOUNT - strap, adhesive backed

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Figure 4-60 and 4-62)

4шт.

6

REF

INSTRUCTION

LIGHT ASSEMBLY - field (See Figure 4-60 and 4-64)

4шт.

Выбрано товаров: 6
