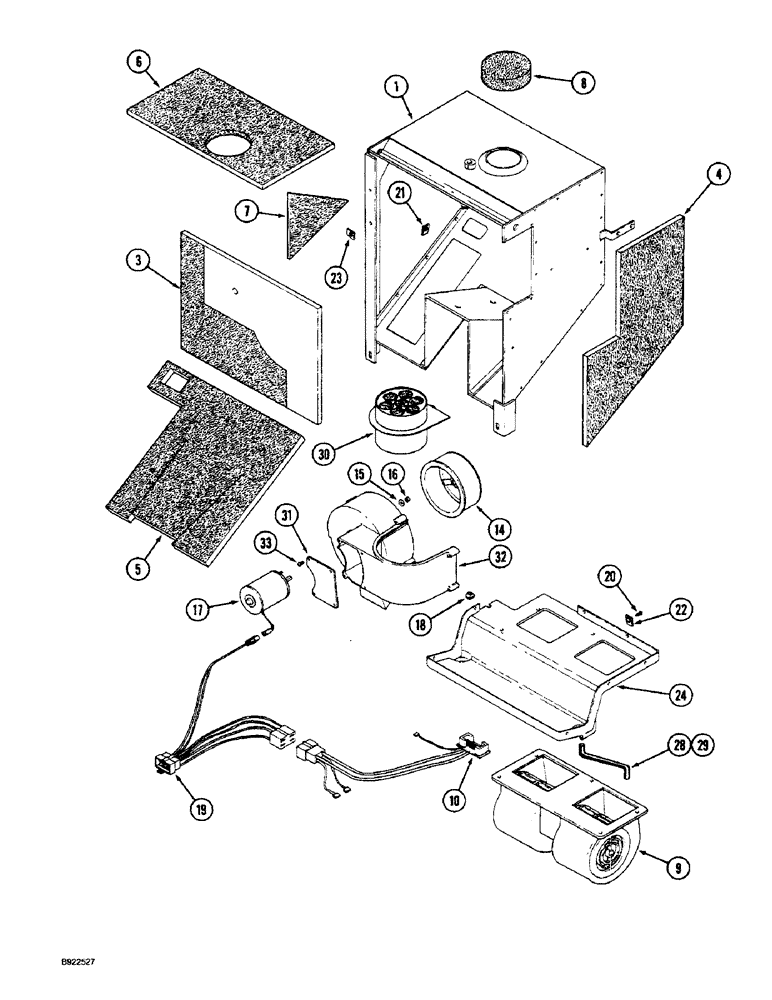

Запчасти Case IH 9270 (9-093A) - CAB AIR CONDITIONER & HEATER MODULE INTERNAL COMPONENTS P.I.N. JEE031850 & AFTER (09) - CHASSIS/ATTACHMENTS

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, Includes: Ref. 1 - 33

1шт.

1

60-6692T3

HOUSING

- module

1шт.

3

60-6696T2

FOAM

PAD - insulating foam, front

1шт.

4

60-6697T1

FOAM

PAD - insulating foam, right-hand

1шт.

5

60-6699T2

FOAM

PAD - insulating foam, bottom

1шт.

6

60-6701T1

FOAM

PAD - insulating foam, top

1шт.

7

60-6702T2

FOAM

PAD - insulating foam, filler

2шт.

8

60-6328T1

FOAM

FILTER - foam, air inlet

1шт.

9

1977564C2

BLOWER

- cab, components not serviced separately

1шт.

9

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

9

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

10

1343938C1

RESISTOR

- blower, cab air

1шт.

14

60-6852T2

BLOWER

FAN - blower, pressurizer, use only with 60-6851T1 motor with 7/16 inch diameter shaft, includes motor shaft retaining clip

1шт.

15

495-31022

WASHER,#10

2шт.

16

9411893

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF

2шт.

17

60-6851T1

ELECTRIC MOTOR

MOTOR - fan, blower, with 5/16 inch diameter shaft

1шт.

17

60-6851T1R

REMAN-ELECTRIC MOTOR

9270 Pwr. Shift, 9270 Synch. Shift, Both Aft. S/N JCB0027096 & Aft., 9280 Pwr. Shift SN JCB0027096 & Aft., 9280 Synch. Shift SN JEE0033803 & Aft.

1шт.

17

60-6851T1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

18

31-2475

GROMMET

harness protection

1шт.

19

60-6707T1

HARNESS

- blower motor

1шт.

20

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - self-tapping, hex washer head, No. 10-16 x 3/4 inch

25шт.

21

60-6708T1

NUT

NUT - U-type, special

11шт.

22

1975905C1

NUT

- special, U-speed, No. 10-16

5шт.

23

19-6157

STEEL SHEET NUT

NUT - U-type, No. 10

10шт.

24

60-6673T1

TRAP

PAN - condensation drip

1шт.

28

REF

INSTRUCTION

HOSE - drip, 9/32 ID x 8 inch long, cut from 87769CX bulk hose, see below

1шт.

29

REF

INSTRUCTION

HOSE - drip, 9/32 ID x 12 inch long, cut from 87769CX bulk hose, see below

1шт.

30

60-6694T2

PRECLEANER

- air inlet

1шт.

31

60-6695T1

LARGE PLATE

PLATE - support, blower motor

1шт.

32

60-6693T1

HOUSING

- blower fan

1шт.

33

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head, self-tapping, special, No. 10 NS x 3/4 inch

13шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 9/32 (7) ID x 1080 inch (27432 mm) long

1шт.
