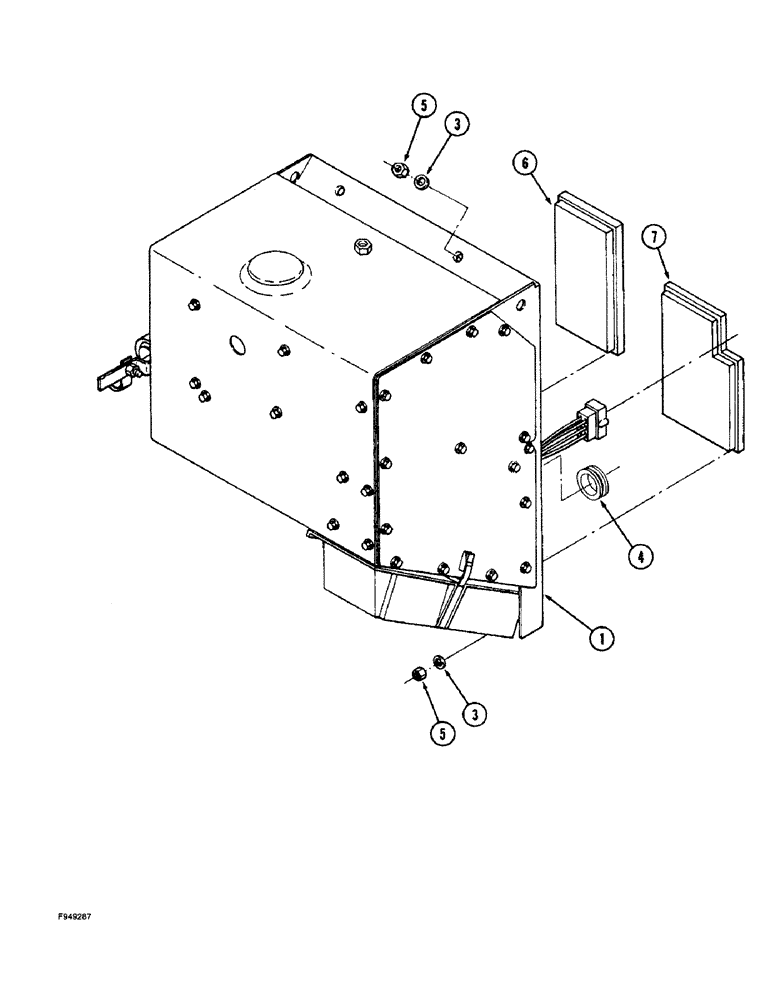

Запчасти Case IH 9270 (9-085A) - CAB AIR CONDITIONER & HEATER MODULE P.I.N. JEE0031850 & AFTER (09) - CHASSIS/ATTACHMENTS

1

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, parts list Figures 9-89A and 9-93A

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

1-1051

GROMMET

harness protection

1шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation

1шт.

7

60-6706T1

FILTER

- air recirculation, cab

1шт.
