(9-084) - CAB AIR CONDITIONER & HEATER MODULE P.I.N. JCB0028400 THROUGH JEE0031849

Запчасти Case IH 9270 (9-084) - CAB AIR CONDITIONER & HEATER MODULE P.I.N. JCB0028400 THROUGH JEE0031849 (09) - CHASSIS/ATTACHMENTS

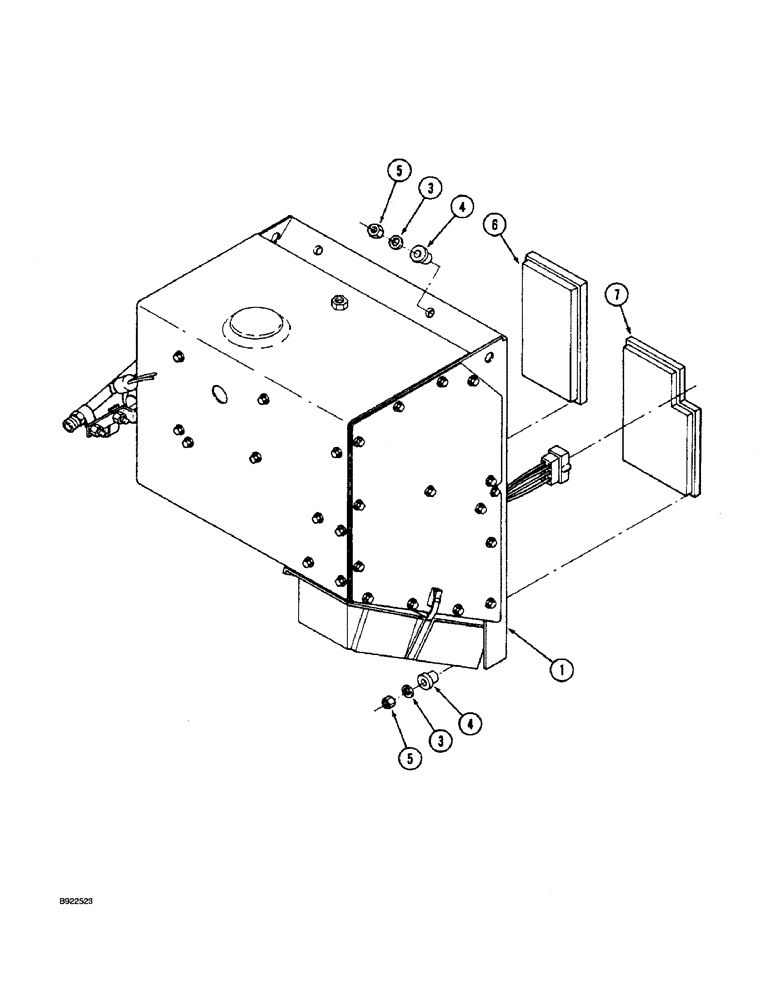

Схема запчастей Case IH 9270 - (9-084) - CAB AIR CONDITIONER & HEATER MODULE P.I.N. JCB0028400 THROUGH JEE0031849 (09) - CHASSIS/ATTACHMENTS
7
3
5
3
4
6
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6700T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, parts list Figures 9-88 and 9-92

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation

2шт.

7

60-6706T1

FILTER

- air recirculation, cab

1шт.
