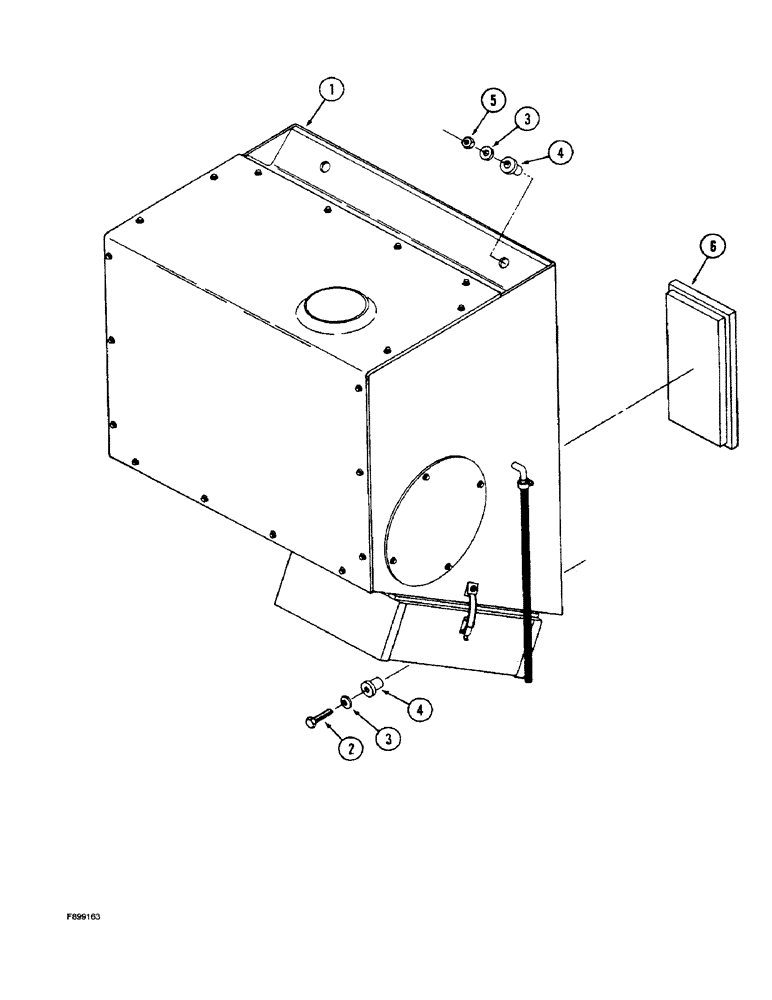

Запчасти Case IH 9270 (9-082) - CAB AIR CONDITIONER & HEATER MODULE PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

1

60-4780T95

AIR CONDITIONER

MODULE ASSEMBLY - air conditioner and heater, parts list Figures 9-86 and 9-90

1шт.

60-4780T95 MODULE ASSY. ORDER PT. NO. 60-7244T91 INSTRUCTION PACKAGE. QTY-1. INSTRUCTION PACKAGE CONTAINS COMPLETE BREAKDOWN OF PARTS, AND QUANTITIES, REQUIRED TO SERVICE MODULE ASSY.

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

4шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

60-3846T2

FILTER

- air recirculation

2шт.
