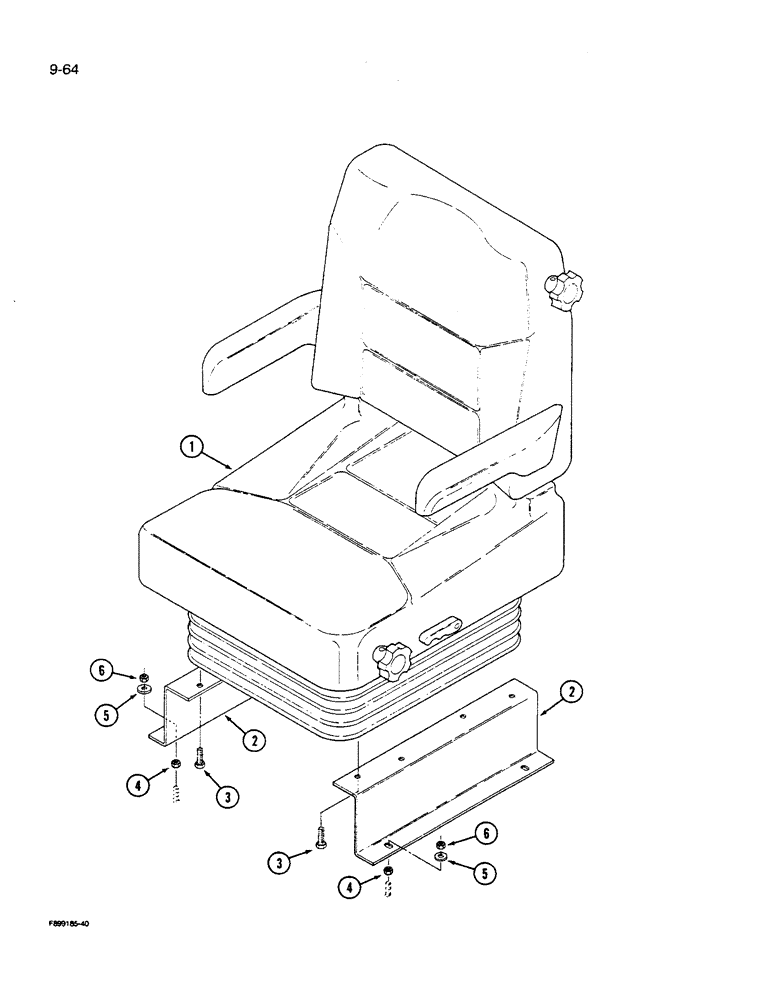

Запчасти Case IH 9270 (9-064) - SEAT MOUNTING AIR RIDE & MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - air ride suspension (See Figure 9-66 - 9-72)

1шт.

1

REF

INSTRUCTION

SEAT ASSEMBLY - mechanical suspension (See Figure 9-74 - 9-78)

1шт.

2

1977735C1

SUPPORT

BRACKET - mounting, seat

2шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 19-5724) 1/2"-13, G5

4шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

6

19-508

LOCK NUT

- hex lock, 1/2 inch NC

4шт.
