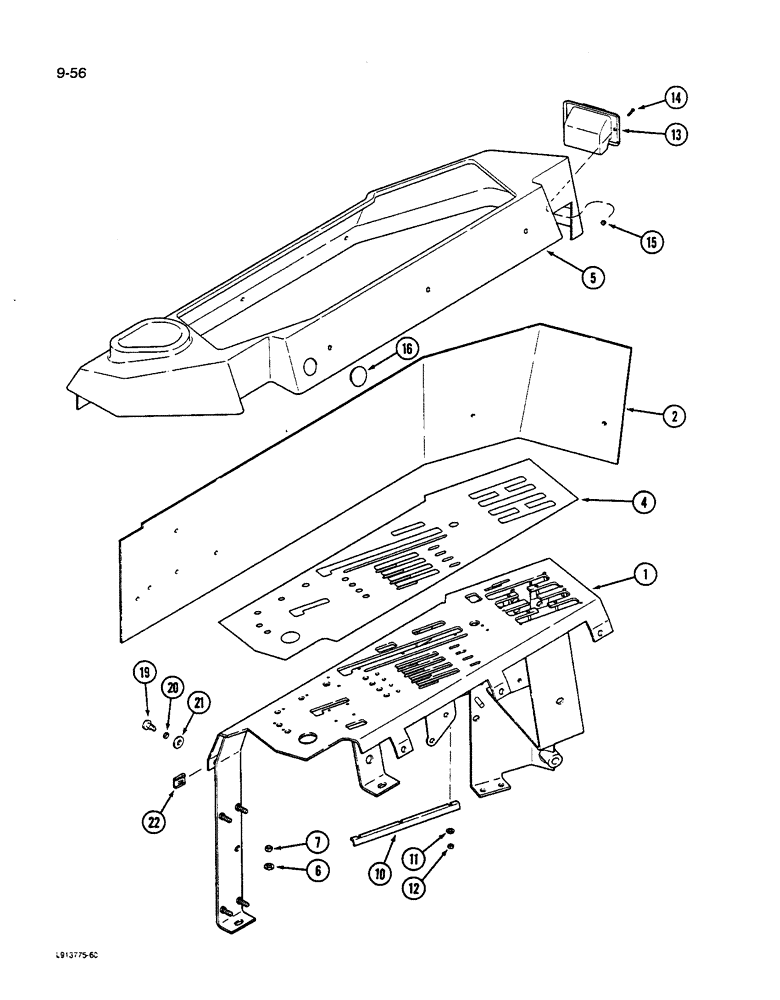

Запчасти Case IH 9270 (9-056) - ROPS CONTROL CONSOLE SYNCHROSHIFT TRACTOR (09) - CHASSIS/ATTACHMENTS

1

60-6611T2

PANEL

- control console

1шт.

2

60-6386T1

PANEL

- console, wrap around

1шт.

4

REF

INSTRUCTION

DECAL - control console (See Figure 9-108)

1шт.

5

60-6436T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

10

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

11

495-31022

WASHER,#10

3шт.

12

19-5563

LOCK NUT

- hex lock, No. 10 NC

3шт.

13

2-6138T91

ASH TRAY

ASHTRAY - smokers

1шт.

14

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- flat head machine, No. 8 NC x 5/8 inch

2шт.

15

19-5621

LOCK NUT,#8-32, GB

NUT - hex lock, No. 8 NC

2шт.

16

22-619

GROMMET

- plug hole

1шт.

19

19-6136

STUD

- lock, quarter turn

11шт.

20

L103349

WASHER

RETAINER - stud

11шт.

21

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

22

A36042

CLIP

RECEPTACLE - lock stud, quarter turn

11шт.
