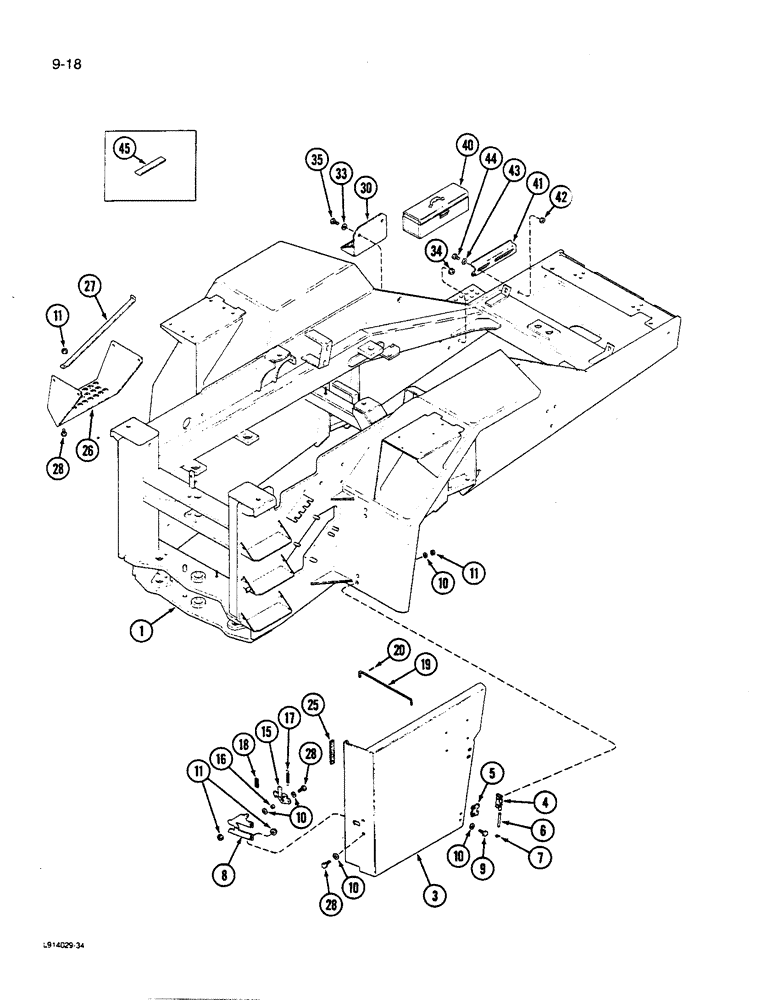

Запчасти Case IH 9270 (9-018) - FRONT FRAME P.I.N. JCB0028400 & AFTER (09) - CHASSIS/ATTACHMENTS

1

70-6300T1

CHASSIS

FRAME - front

1шт.

3

70-6209T2

DOOR

- component cover

1шт.

4

70-6210T1

HINGE

- mounting, door

2шт.

5

70-6200T1

HINGE

- door

2шт.

6

70-1996T3

PIN,6.35mm OD x 111mm L

ROD - hinge

2шт.

7

70-2600T2

CIRCLIP

RING - retaining

4шт.

8

70-6207T2

SUPPORT

MOUNT - latch

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

11

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

16шт.

15

70-6206T1

LATCH

- door

1шт.

16

70-5177T1

SPACER

- pivot, latch

1шт.

17

90-7524T1

SPRING

- latch

1шт.

18

90-6966T1

MOLDING

- latch

1шт.

19

70-6213T1

STEM

ROD - retainer

1шт.

20

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

1шт.

25

60-6607T2

FOAM

- strip (Order 60-4596T2, Serial Range: cut-length)

1шт.

26

70-5107T1

STEP

- rear, bottom

1шт.

27

70-5109T1

FIXING STRIP

STRAP - stabilizer, step

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

30

70-2142T3

STEP

- lower front

1шт.

33

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

2шт.

35-1742T91

BOX, TOOL

TOOL BOX KIT - operator, Includes: Ref. 40 - 44

1шт.

40

A181436

TOOL BOX

BOX, TOOL

1шт.

41

A181434

SUPPORT

BRACKET - mounting

1шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

43

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

44

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

45

1-6835

ADHESIVE STRIP

STRIP - safety, no skid (Order 26-211, Serial Range: cut-length)

4шт.
