Запчасти Case IH 9270 (8-040) - PRIORITY REMOTE HYDRAULIC VALVE KIT WITH LOAD CHECK CONT. (08) - HYDRAULICS

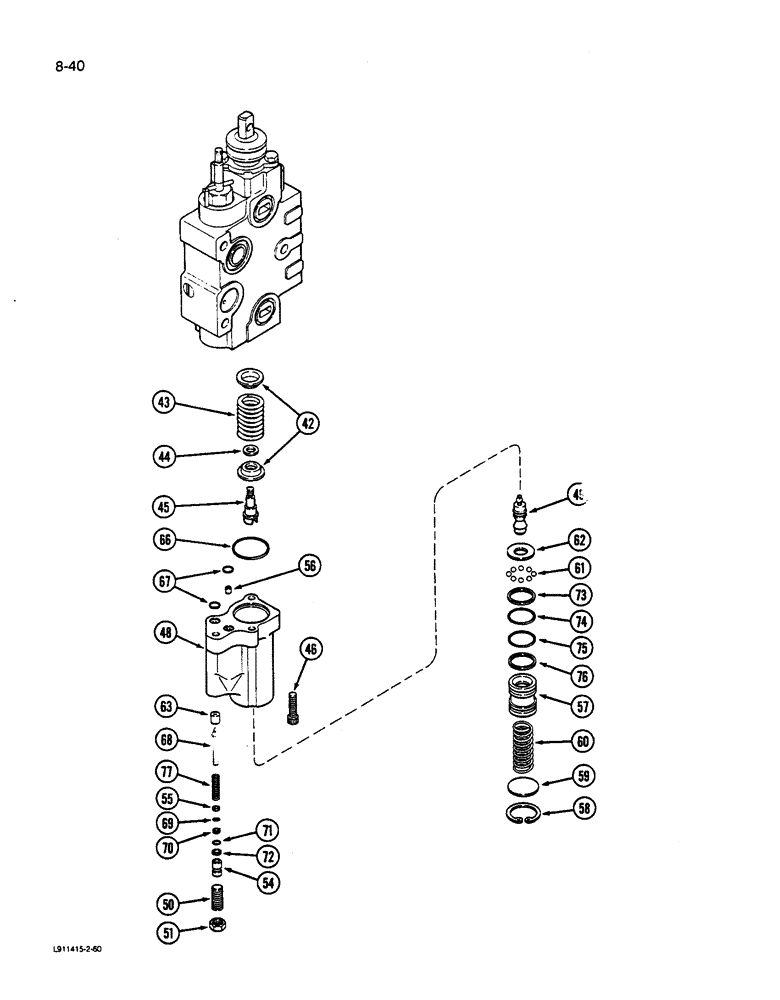

Схема запчастей Case IH 9270 - (8-040) - PRIORITY REMOTE HYDRAULIC VALVE KIT WITH LOAD CHECK CONT. (08) - HYDRAULICS
44
71
77
54
48
67
75
58
45
56
49
61
50
59
72
42
46
68
70
62
51
66
76
60
43
74
69
73
63
55
57

Артикул

Название

Примечание

Количество

35-1753T91

VALVE

KIT - priority remote, hydrulic (Continued), Includes: Ref. 42 - 77 and 1 - 38 on Fig. 8-38

1шт.

A52404

VALVE

ASSEMBLY - priority float (with load check), Includes: Ref. 42 - 77

1шт.

42

A47197

RETAINER

- spring

2шт.

43

A47177

SPRING

- centering

1шт.

44

A47199

BUSHING

SPACER - detent

1шт.

45

A47193

COUPLING, BREAK AWAY

COUPLER - detent pivot

1шт.

46

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

3шт.

A52435

HOUSING ASSY.

HOUSING ASSEMBLY - detent, Includes: Ref. 48 - 77

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - detent (Order A52435)

1шт.

49

A52409

SHAFT

- detent

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

- adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

54

A48936

GOVERNOR

PISTON - regulator

1шт.

55

A48935

WASHER

- poppet valve

1шт.

56

A47658

PLUG

- orifice

1шт.

57

A48932

PISTON

- kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

RETAINER - piston

1шт.

60

A48934

SPRING

- detent

1шт.

61

211-205

BALL

- 7/32 inch, Grade 25, chrome alloy steel

8шт.

62

A48931

WASHER

- guide

1шт.

63

A47201

SEAT

- pilot float (Replaces A46924)

1шт.

A48942

KIT

SEAL KIT - detent, Includes: Ref. 66 - 77

1шт.

66

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk, Retainer

1шт.

67

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

68

NSS

NOT SOLD SEPARAT

POPPET - detent

1шт.

69

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

70

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- back-up

1шт.

71

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

77

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

Выбрано товаров: 35
